Aluminium frame mount, T=8.0mm, black, 100pcs.

Art.-No. 151-04159

| CTCM6CZF-PA66STHS-BK

|

Made from our PA66HIRHS(REC100) post-industrial recycled material, this product offers exceptional performance in a wide range of industries and applications.
The ReSource family of products helps companies meet their sustainability goals.
Temporarily holds wires along routing path until ready to make permanent.
Built-in CutZone safety feature prevents damage to wires and cables.
Unique EZ Feed slot maintains clear space to insert cable ties.
Frame mount allows for simple quarter-turn mounting into 80/20, 40- or 15-Series aluminum frames.

Add to watchlist

Downloads e-Learning

More products in this product group:

Fixing elements for aluminium frames

Base Data

Application	Our aluminium frame mounts are specially designed for aluminium construction profiles. Theirs installation and handling is very simple. At every favoured place on the profile just with a quarter turn the mount is firmly fixed. Also it can be easily loosened and repositioned at any time. The mounts are custom developed for several aluminium construction profiles.
Colour	Black (BK)
Fixation Method	80/20 Frame
For Ties	T18-T120
Material	Polyamide 6.6, super tough, heat stabilized (PA66STHS)
PART DESCRIPTION	CTCM6CZF-PA66STHS-BK
Package Content	100pcs.
Package Content packed in	pack
Product Group	Fixing elements for aluminium frames
Short Description	Mounts which are special designed for aluminum construction profiles
Strap Thickness max.	3.25mm
Strap Thickness max.	0.13"
Type	CTCM6CZF
UV-Stabilised	No

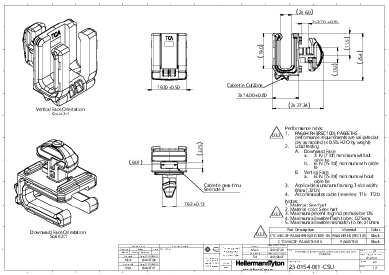

Product Dimensions

Height (H)	14.0mm
Height (H2)	6.0mm
Length (L)	25.4mm
Length (L2)	19.0mm
Panel Thickness	8.0mm
Strap Width max. (G)	0.36"
Strap Width max. (G)	9.07mm
Width (W)	19.3mm
Width (W2)	8.0mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	CN
Customs Number	3926909988
GTIN-13 / EAN	4031026739021
Packaging 1 - Qty	100
Packaging 1 - Type	pack

More Information

ETIM 7.0 Key	EC000449
ETIM 8.0 Key	EC000449
ETIM 9.0 Key	EC000449
UNSPSC Key	39121717
