Cable tie mount for screw fixation, Wmax=9.07mm, ⌀4.5 mm, #8 (M4) Screw, black, 100pcs.


Art.-No. 151-04484

| CTCM6CZS_AE-PA66HIRHS-BK

 |

Copied
24672640

    • Temporarily holds wires along routing path until ready to make permanent.
    • Built-in CutZone™ safety feature prevents damage to wires and cables.
    • Unique EZ Feed™ slot maintains clear space to insert cable ties.
    • Allows flexibility of frame size and mounting location with #8 (M4) screw into panel surface or with T-nut in frame.
    Add to watchlist
    Downloads e-Learning
    Colour Black (BK)

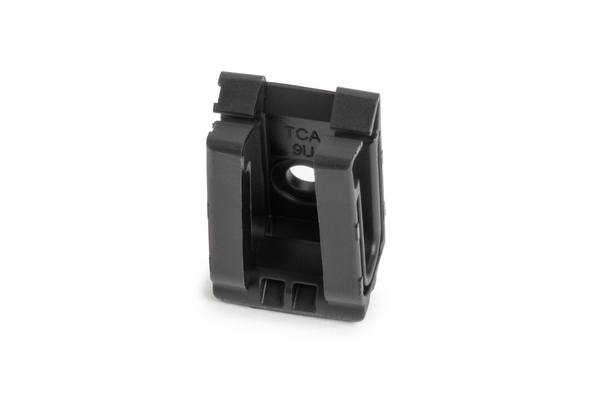

    Description This cradle mount fastens to a panel with a screw or to a frame using a screw and T-nut. It is ideal for routing wires in industrial applications where rework and adjustments are common. Mount features a cradle opening for cable retention. The cradle arms can temporarily hold wires for simple adjustments and cable additions and protect against abrasion and cable damage. To permanently mount the bundle, the EZ Feed™ cable tie slot eliminates common obstructions for faster completion. During rework, the CutZone™ prevents wire damage when cutting off cable ties.
    Fixation Method Screw Mounting and Rivet
    For Ties T18 - T120
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Mounting Screw Type #8 (M4) Screw
    PART DESCRIPTION CTCM6CZS_AE-PA66HIRHS-BK
    Package Content 100pcs.
    Package Content packed in bag
    Strap Thickness max. 3.25mm
    Strap Thickness max. 0.13"
    Type CTCM6CZS_AE
    UV-Stabilised Yes
    Weight/Unit 0.00294835kg

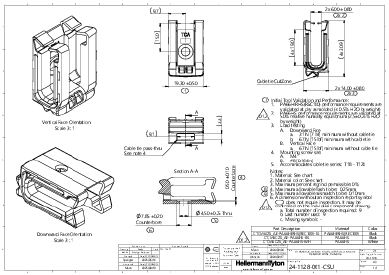

    Height (H) 14.0mm
    Height (H2) 6.0mm
    Length (L) 30.9mm
    Strap Width max. (G) 0.36"
    Strap Width max. (G) 9.07mm
    Width (W) 19.3mm
    for Hole ⌀ (FH) 4.5 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    Operating Temperature, 1000h +160 °C
    Operating Temperature, 5000h +125 °C
    Operating Temperature, 500h +165 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026766560
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.2630836kg
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Width (m) 0.3984625m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
