Fixing elements for parallel routing, twistable : DSWS4

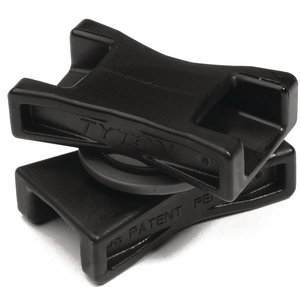

Fixing element 23.6x18 mm, for parallel routing, PA66HS/POM, black, Article number: 151-06500


  • For parallel routing of bundles that can be twisted 360° even after setting
  • Secure alignment to the bundle due to H-design
  • Cable tie head can be moved after bundling
  • For cable ties up to 12.7 mm wide
  • For post-installation of bundles

Certifications & Approvals


These fixing element for parallel routing can be used where bundles need separation from each other combined with the necessary functionality to support moving harnesses.

DSWS-Series is suitable for following markets and industries

Colour Black (BK)
Pack Cont. 2200pcs.
Package Quantity per bag
Product Family DSWS-Series
Product Group Fixing elements for parallel routing, twistable
Short Description Fixing element 23.6x18 mm, for parallel routing, PA66HS/POM, black
Bundle ∅ max. 76.0mm
Bundle ∅ min. 6.0mm
Height (H) 18.0mm
Length (L) 23.6mm
Strap Width max. (G) 0.5"
Strap Width max. (G) 12.7mm
Width (W) 20.3mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS), Polyacetal (POM)
Min. Extr. Force (lbs) 100.0lbs
Min. Extraction Force (N) 445N
Nato number 5975-12-405-5360
Operating Temperature - °C -40 °C to +105 °C, -35 °C to +85 °C
Prop65 Warning No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026312385
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.4m
Packaging 1 - Qty 2200
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.024
Packaging 1 - Weight (kg) 7.942kg
Packaging 1 - Width (m) 0.3m
Weight 7.942kg
ETIM 6.0 EC000449
ETIM 7.0 Key EC000449
UNSPSC Key 39121717
