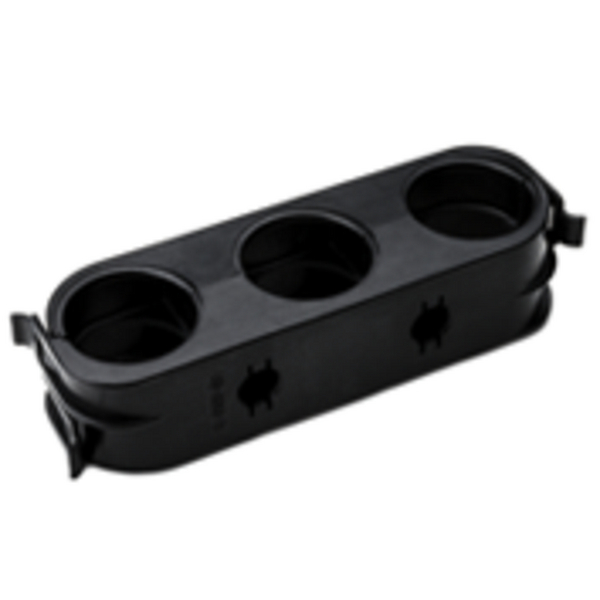

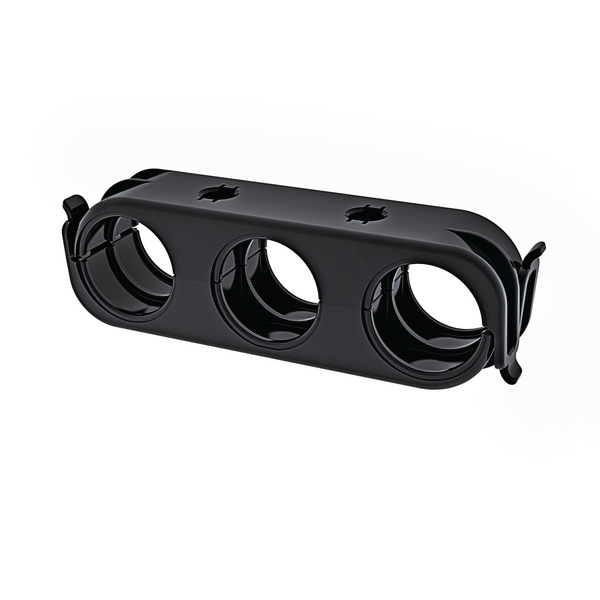

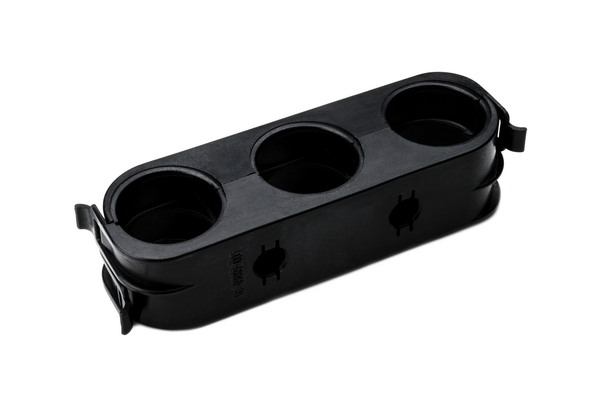

Cable tie mount with pipe/tube holder/for screw fixation, ⌀8.12 mm, black, 500pcs.
Art.-No. 133-00998 | HC3A-PA66HIRGF13-BK

Copied
HC3A
Each mount has two pawls for easy pre-installation on a threaded fastener prior to securing with a mechanical fastener.
Clip includes an internal rib that spans the inside of the bracket to fit securely into the profile of the tubing to prevent lateral movement and slipping of the tubing.

    • Separates and secures bundles avoiding abrasion.
    • Designed to handle both convoluted tubing and bundles not covered in convoluted tubing.
    • Available in a variety of sizes and colors to be easily identified.
    Add to watchlist
    Downloads
    Brand Family HC-Series
    Color Black (BK)

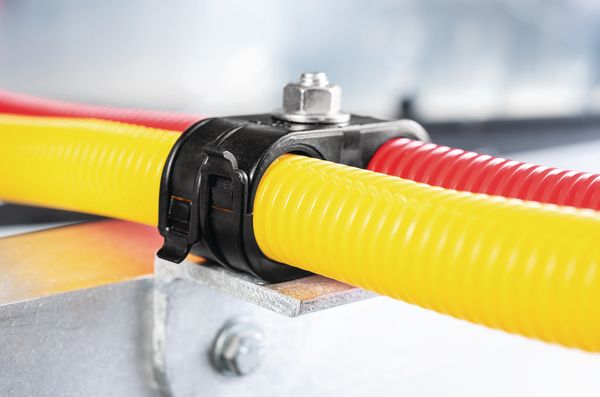

    Description HC Clamps separate multiple bundles and secure them to brackets or frame rails. Each mount has two pawls for easy pre-installation on a threaded fastener prior to securing with a mechanical fastener. HC Clamps have ribs that make them ideal for convoluted tubing, but they can also be used to separate separate bundles that aren't protected with convoluted tubing.
    Key product features for multiple routing, vibration absorbing, lockable
    PART DESCRIPTION HC3A-PA66HIRGF13-BK
    Packaging Type pack
    Part No. 133-00998
    Product family Products for wires and hoses, Products for parallel/multiple routing
    Short Desc. HC Clamp Bundle Separator, Three Hole, PA66GFHIRHS, Black, 500/pkg
    Type HC3A
    UV Resistant No
    Height (imperial) 1.38"
    Height (metric) 34.94mm
    Length (imperial) 4.246"
    Length (metric) 107.86mm
    Max. Bundle Diameter (imperial) 0.96"
    Max. Bundle Diameter (metric) 24.3mm
    Max. Bundle Diameter First Hole (imperial) 0.96"
    Max. Bundle Diameter First Hole (metric) 24.39mm
    Max. Bundle Diameter Second Hole (imperial) 0.96"
    Max. Bundle Diameter Second Hole (metric) 24.39mm
    Min. Bundle Diameter (imperial) 0.96"
    Min. Bundle Diameter (metric) 24.39mm
    Mounting Hole Diameter (imperial) 0.32 "
    Mounting Hole Diameter (metric) 8.12 mm
    Width (imperial) 1.1"
    Width (metric) 27.94mm
    CE Certification No
    CSA Certified No
    Material PA66HIRGF13
    Material Polyamide 6.6, high impact modified, glass-fiber reinforced (PA66HIRGF13)
    Operating Temperature -40°F to +257°F (-40°C to +125°C)
    Prop65 Warning No
    REACH Conformity Yes
    ROHS compliant Yes
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Customs Number (Schedule B) 3926909988
    Harmonized Tariff Schedule Code 3926.90.9989
    Packaging 1 - Weight (kg) 10.786001kg
    Pkg. Qty. 500
    Pkg. Qty. 500Pieces
