Cable tie mount for screw fixation, Wmax=13.5mm, ⌀6.7 mm, #1/4" (M6) Screw, black, 500pcs.
Art.-No. 151-01122
| LPM25-PA66HIRHSUV-BK
Copied
- Separates bundles to help prevent chafing and wear.
- Single bundles can be mounted on top of the mount, or two bundles can be separated using the two side saddles; giving the mount versatility.
- Low profile design allows mount to be placed in areas where space is limited.
| Brand Family | LPM-Series |
| Color | Black (BK) |
| Description | Low Profile Mounts secure bundles close to mounting surfaces, making them ideal for applications where bundle mounting space is limited. These are secured with a .25" mechanical fastener, and have a counter bore for easy access with a socket which can be torqued up to 100 in/lbs. The mount accommodates cable ties up to .5" in width. |
| Key product features | vibration absorbing |
| PART DESCRIPTION | LPM25-PA66HIRHSUV-BK |
| Packaging Type | pack |
| Part No. | 151-01122 |
| Product family | Heavy Duty Mounts |
| Product family | Products to screw |
| Short Desc. | Low Profile Screw Mount, 1.8 x 0.98", 0.25" Hole, PA66HIRHSUV, Black, 500/pkg |
| Type | LPM25 |
| UV Resistant | Yes |
| Cable Ties | T50 - T250 |
| Fixation Method | Screw Mounting and Rivet |

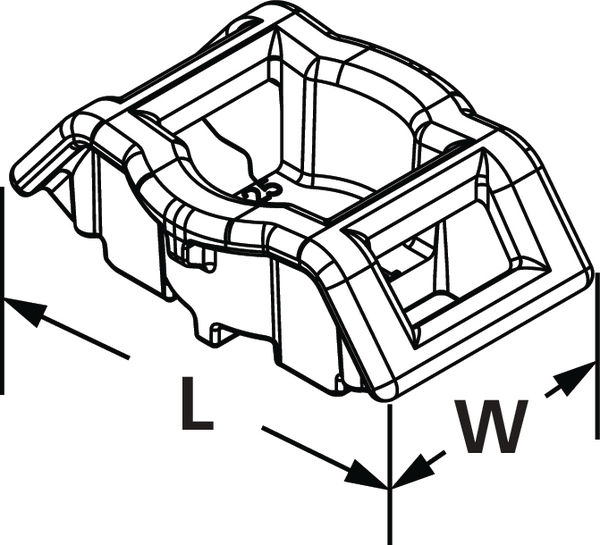

| Height (imperial) | 0.66" |
| Height (metric) | 16.7mm |
| Length (imperial) | 1.8" |
| Length (metric) | 45.1mm |
| Max. Cable Tie Width (imperial) | 0.53" |
| Max. Cable Tie Width (metric) | 13.5mm |
| Mounting Hole Diameter (imperial) | 0.25 " |
| Mounting Hole Diameter (metric) | 6.7 mm |
| Mounting Hole Shape | Round |
| Mounting Screw Type | 1/4" (M6) Screw |
| Width (imperial) | 0.98" |
| Width (metric) | 24.9mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
