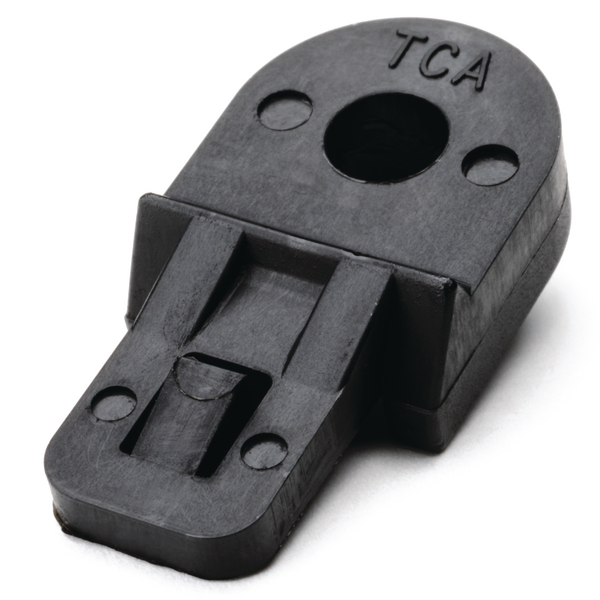

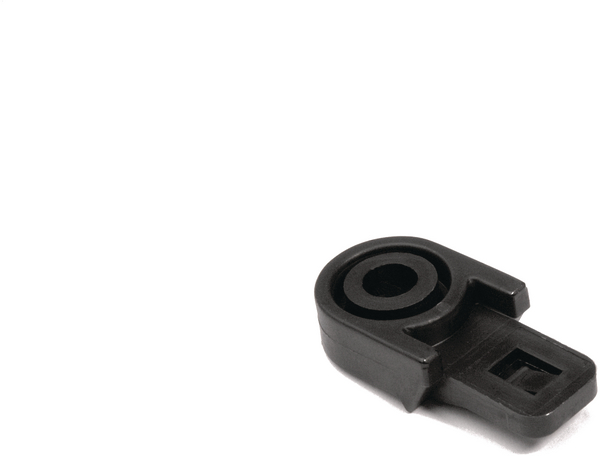

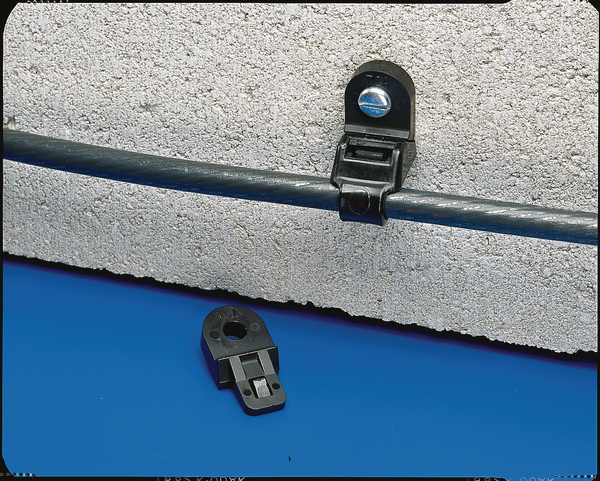

Cable tie mount for screw fixation, Wmax=12.5mm, ⌀6.6 mm, #1/4" (M6) Screw, black, 100pcs.
Art.-No. 151-00358 | LTM250-PA66HS-BK |

Copied

    Package size
    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method Screw Mounting and Rivet
    For Ties T250
    Material Polyamide 6.6, heat stabilised (PA66HS)
    Mounting Screw Type #1/4" (M6) Screw
    PART DESCRIPTION LTM250-PA66HS-BK
    Pack Cont. 100pcs.
    Package Content packed in pack
    Type LTM250

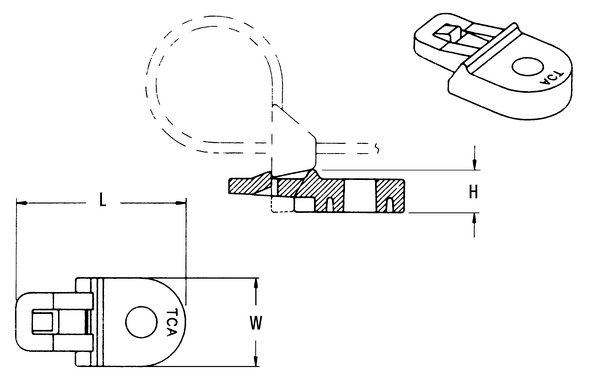

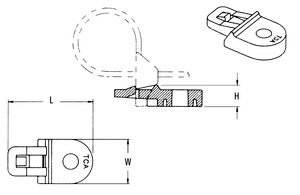

    Height (H) 9.6mm
    Length (L) 37.1mm
    Strap Width max. (G) 0.49"
    Strap Width max. (G) 12.5mm
    UV-Stabilised No
    Weight/Unit 0.00323kg
    Width (W) 18.5mm
    for Hole ⌀ (FH) 6.6 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026726762
    Packaging 1 - Height (m) 0.048m
    Packaging 1 - Length (m) 0.13m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00156m³
    Packaging 1 - Weight (kg) 0.323001kg
    Packaging 1 - Width (m) 0.25m
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Weight (kg) 10.31003kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.209m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.161m³
    Packaging 4 - Weight (kg) 227.2kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
