Cable tie mount for magnetic use, Wmax=6.3mm, black, 100pcs.
Art.-No. 151-04016 | MAGCTM5M-NDFEB35M/POM/ST-BK |

Copied

    Package size
    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method Magnet
    For Ties T18
    Magnetic pull strength (N) 22N
    Magnetic pull strength (kgf) 2.24
    Magnetic pull strength (lb/ft) 5lbf-ft
    Material Neodymium alloy 35M (NDFEB35M), Polyacetal (POM), Steel (ST)
    PART DESCRIPTION MAGCTM5M-NDFEB35M/POM/ST-BK
    Package Content 100pcs.
    Package Content packed in pack
    Rotation (°) 0°
    Type MAGCTM5M

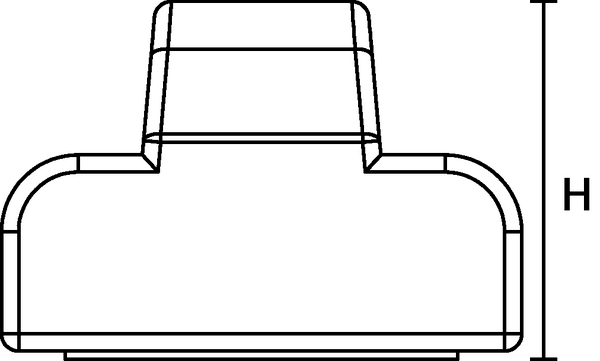

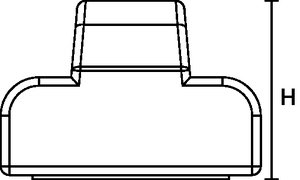

    Height (H) 10.5mm
    Length (L) 15.3mm
    Strap Width max. (G) 0.25"
    Strap Width max. (G) 6.3mm
    Width (W) 15mm
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Operating Temperature -40 °C to +80 °C
    Plenum Rating AH-2
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<BR>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UL-File Number E64139
    Country of Origin CN
    GTIN-13 / EAN 4031026730240
    Packaging 1 - Type bag
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
