21/02/2026

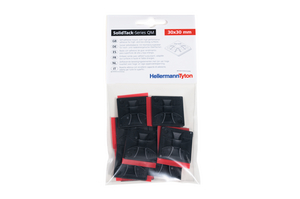

Cable tie mount for adhesive use, Wmax=5.1mm, ⌀4.1 mm, natural, 100pcs.
Art.-No. 151-01593 | QM30APT-I-PA66-NA

Copied

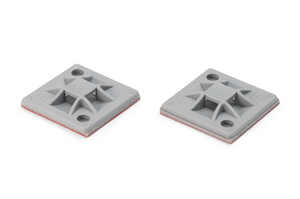

Mounting bases Q-Mount.
The Q-mount base locks the Q-tie in vertical position, your hands are free to apply the cables.
2. To release the tie push the tail slightly out of the head.
SolidTack-Series QM - Cable Tie Mounts with high performance adhesive; screwable or self adhesive versions. Perfect for combination with T-series cable ties.

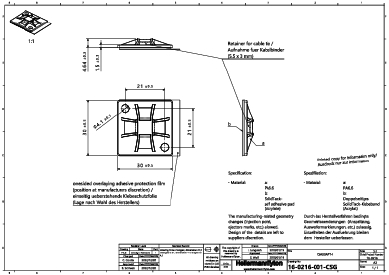

Q-Mount (plan view)
Q-Mount (side view)
3. When installation is finished, Q-tie can be tightened and cut off - either manually or with an application tool.
Q-ties can be used for both temporary and final cable installation.

    This product is not available anymore.

    Alternative product available

    • Q-mounts allow a 4-way entry for Q-ties and are available in a screwable or self adhesive version.
    • Due of the special design of the mounting base, they offer a perfect solution in combination with the Q-tie cable ties.
    • The Q-mount keeps the Q-tie in place during pre-assembly and ensures that the Q-tie does not slip out even in difficult situations, for example vertical mounting positions.
    • In combination with the special SolidTack adhesive (APT) the Q-mount can ideally be used for problematic surfaces like PE or PP to where a standard adhesive base does not work.
    • The special adhesive tape is made of a acrylate mass with a good initial tack.
    Add to watchlist
    Downloads e-Learning
    Application Q-mounts are ideally suited for holding cable ties in place. They would perfectly fit to all applications where a reliable and durable fixation is required. With its SolidTack adhesive Q-mounts offer an innovative fixing solution especially for low energy surfaces or if drilling a hole is not possible. Suitable for a wide range of applications on varnished or plastic or metal surfaces in many areas like electrical cabinet, railway, aerospace, automotive and agriculture machinery.
    Brand Family SolidTack
    Color Natural (NA)
    PART DESCRIPTION QM30APT-I-PA66-NA
    Packaging Type bag
    Part No. 151-01593
    Product family Adhesive Mount Cable Tie Bases
    Product family Self adhesive products
    Type QM30APT-I
    Fixation Method Screw Mounting and Adhesive
    Height (metric) 4.5mm
    Length (metric) 30.0mm
    Max. Cable Tie Width (metric) 5.1mm
    Mounting Hole Diameter (metric) 4.1 mm
    Width (metric) 30.0mm
    Adhesive Acrylate with base of acrylic foam
    Flammability UL 94 V-2 (excluding adhesive)
    Halogen Free Yes
    Material PA66
    Material Polyamide 6.6 (PA66)
    Operating Temperature -40°F to +185°F (-40°C to +85°C)
    Prop65 Warning No
    REACH Conformity Yes
    ROHS compliant Yes
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Packaging 1 - Weight (kg) 0.21168kg
    Pkg. Qty. 100
    Pkg. Qty. 100Pieces
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
