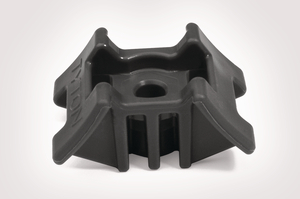

Cable tie mount for screw fixation, Wmax=13.5mm, ⌀6.0 mm/6.35 mm (hexagonal), ⌀6.35 mm, #1/4" (M6) Screw, black, 500pcs.
Art.-No. 151-29403 | S2HM25-PA66HIRHSUV-BK |

Copied
Separates bundles from wear and chafing, providing additional longevity.
This saddle mount is installed between two bundles to separate them and prevent chafing and wear.

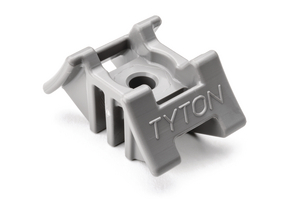

S2CM258

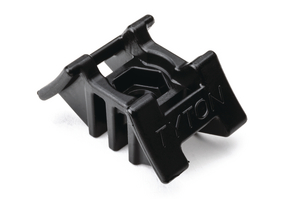

S2HM25
Two Way Saddle Mounts
Two Way Saddle Mounts
S2CM25
S2HM25

    • For parallel routing of bundles
    • Secure alignment to the bundle due to H-design
    • Cable tie head can be moved after bundling
    • For cable ties up to 12.7 mm wide
    • Easy maintenance of bundle by simply changing the cable tie
    Package size
    Add to watchlist
    Downloads CAD-Download
    Application With its heavy duty fixing ability this product offers excellent performance for the truck, ship and construction vehicle industries.
    Colour Black (BK)
    Fixation Method Screw Mounting and Rivet
    For Ties T50 - T250
    Key product features vibration absorbing, for multiple routing
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Mounting Screw Type #1/4" (M6) Screw
    PART DESCRIPTION S2HM25-PA66HIRHSUV-BK
    Package Content 500pcs.
    Package Content packed in pack
    Product Family S-Series
    Product Group Two way saddle mount for heavy duty applications, for parallel separation
    Short Description Two way saddle mount 45x30 mm, high impact, heat and UV stabilised, black
    Type S2HM25
    UV-Stabilised Yes
    Weight/Unit 0.00988kg
    Bundle ⌀ 89.0mm
    Bundle ⌀ max. 89.0mm
    Height (H) 23.0mm
    Height (H2) 15.0mm
    Length (L) 45.0mm
    Strap Width max. (G) 0.5"
    Strap Width max. (G) 13.5mm
    Stud ⌀ 0.25"
    Stud ⌀ 6.35 mm
    Width (W) 30.0mm
    for Hole ⌀ (FH) 6.0 mm, 6.35 mm (hexagonal)
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026312477
    Packaging 1 - Height (m) 0.048m
    Packaging 1 - Length (m) 0.22m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0017952m³
    Packaging 1 - Weight (kg) 4.940001kg
    Packaging 1 - Width (m) 0.17m
    Packaging 3 - Height (m) 0.1397m
    Packaging 3 - Length (m) 0.51276m
    Packaging 3 - Qty 500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0223m³
    Packaging 3 - Weight (kg) 5.460001kg
    Packaging 3 - Width (m) 0.31115m
    Packaging 4 - Height (m) 1.145m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 14000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.099m³
    Packaging 4 - Weight (kg) 173.88kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
