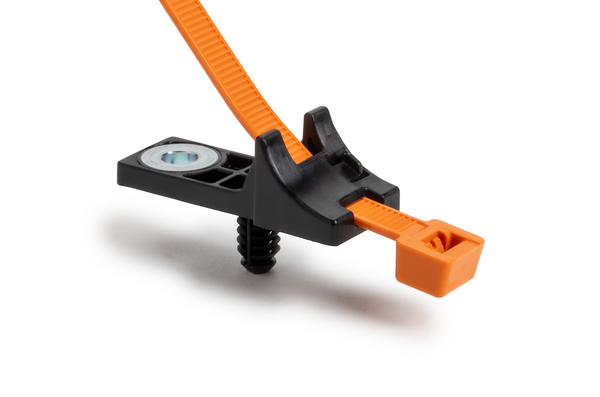

Fixing tie for screw fixation, inside serrated, ⌀5.0-105.0mm, orange/black, 1000pcs.
Art.-No. 156-04048 | T120RCPCM6FT6.5SET-PA66HIRHS-OG/BK

Anti-rotation pin eliminates movement of bundle when fastening bolt.
Heavy duty mount with robust 120 lb tie delivers an ultra strong alternative to metal clamps.
Assembly withstands vibrations and displacement forces.
Metal bushing accommodates high tightening torque.

Color	Orange (OG), High Voltage (HV), Black (BK)
Description	These heavy duty cable tie mounts, secured with mechanical fasteners, include an anti-rotation pin that keeps the mount and harness assembly in position during the torquing of the bolt or nut. They provide an attachment point for securing and routing a single bundle. The mounts provide the highest level of fastening for critical cable security.
Min. Tensile Strength (imperial)	120lbs
Min. Tensile Strength (metric)	535N
PART DESCRIPTION	T120RCPCM6FT6.5SET-PA66HIRHS-OG/BK
Packaging Type	pack
Part No.	156-04048
Product family	2-Piece Tie Assemblies
Product family	Products to screw
Short Desc.	2-Piece Cable Tie with Screw Mount, 15" Long, 0.4" Hole, 4.1" Max Bundle, 120lb, PA66HIRHS, BK/OG, 1000/ctn
Type	T120RCPCM6FT6.5SET

Cable Tie Closure	plastic pawl
Fixation Method	Screw Mount
Height (imperial)	1.11"
Height (metric)	28.22mm
Identification Plate Position	none
Length (imperial)	1.83"
Length (metric)	46.53mm
Max. Bundle Diameter (imperial)	4.13"
Max. Bundle Diameter (metric)	105.0mm
Max. Cable Tie Width (imperial)	0.3"
Min. Bundle Diameter (imperial)	0.2"
Min. Bundle Diameter (metric)	5.0mm
Mounting Hole Diameter (metric)	M6
Mounting Hole Shape	Round
Mounting Screw Type	M6 Screw
Releasable Closure	No
Stud Diameter (imperial)	0.24"
Stud Diameter (metric)	6.0 mm
Width (imperial)	0.87"
Width (metric)	20.0mm

CE Certification	No
CSA Certified	No
Cable Tie	Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Flammability	UL 94 HB
Halogen Free	Yes
Material	PA66HIRHS
Material	Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Material Foot Part	PA66HIRHSUV
Operating Temperature	-40°F to +230°F (-40°C to +110°C)
Prop65 Warning	No
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Customs Number (Schedule B)	3926909988
Harmonized Tariff Schedule Code	3926.90.9989
Pkg. Qty.	1000
Pkg. Qty.	1000Pieces
