Cable ties for food industry, detectable : MCT120R

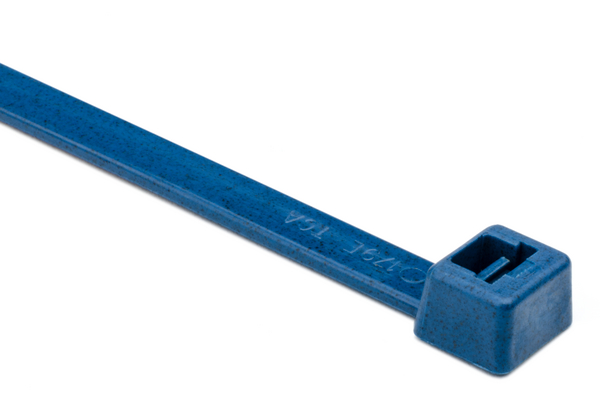

Metal Content Tie 387x7.6 mm, PA66MP, blue, Article number: 111-01136
Features
- Total metal dispersion throughout the tie
- Can support quality assurance in the production of food stuffs, for example HACCP
- Blue colour for easy visual detection
- Greatly reduces risk of contamination
- Magnetic detectable (detection level depending on specific application and equipment)
Certifications & Approvals
Application
The Metal Content Tie is a cable tie specifically designed for use in the food and pharmaceutical processing industries. A unique manufacturing process, involving the inclusion of a metallic pigment, enables even small 'cut-off' sections of the tie to be detected by standard metal-detecting equipment. Ideally suited for the installaton of cabling in and around the manufacturing process.
MCT-Series, PA66MP is suitable for following markets and industries
More products in this product group
Cable ties for food industry, detectable >| Application 2 | Applications – Ideally suited for electrical cabling both on plant and within areas adjacent to manufacturing process. Can be part of the Hazardous Analysis of Critical Control Point (HACCP), a pro-active process control system by which food quality is ensured, greatly reducing the risk of contamination leading to loss and liability. |
| Application Tool | MK6, MK9P, MK21, EVO9, EVO9HT |
| Colour | Blue (BU) |
| Features and Benefits | The HellermanTyton Metal Content Tie is a cable tie specifically designed for use in the food and pharmaceutical processing industries. A unique manufacturing process, involving the inclusion of a metallic pigment, enables the tie to be detected more readily than a standard cable tie (through metal detection process control equipment). |
| Fixation Method | Cable Tie |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | MCT120R-PA66MP-BU |
| Product Family | MCT-Series, PA66MP |
| Product Group | Cable ties for food industry, detectable |
| Releasable Closure (Yes/No) | No |
| Short Description | Metal Content Tie 387x7.6 mm, PA66MP, blue |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
|
|
| Bundle ∅ max. | 100.0mm |
| Bundle ∅ min. | 3.0mm |
| Length (L) | 387.0mm |
| Min.Tensile Strength | 535.0N |
| Thickness (T) | 1.8mm |
| Width (W) | 7.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6, with metal particles (PA66MP) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
|
|
|
| EAN / GTIN | 5022660333118 |
| Packaging 1 - Height (m) | 0.053m |
| Packaging 1 - Length (m) | 0.429m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00407m³ |
| Packaging 1 - Weight (kg) | 0.63kg |
| Packaging 1 - Width (m) | 0.179m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 13.402kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.235m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 40000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.186m³ |
| Packaging 4 - Weight (kg) | 289.04kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.63kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
| UNSPSC Key | 39121703 |
