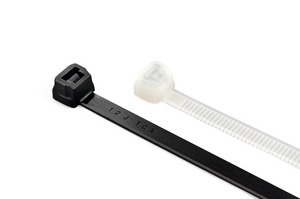

Cable tie inside serrated, 200x5mm, ⌀1.5-50.0mm, black, 100pcs.
Art.-No. 107-00004 | Z80R-PA66HSW-BK

Copied
Z-Series

    • High vibration stability and impact resistance
    • Natural and black cable ties available in different sizes
    • Made from 100 % high quality plastic, allows for good recycling
    • Inside serration for a strong hold around bundles
    • Easy application either manually or with a processing tool
    • Heat stabilised and UV-resistant material (PA66HSW) for higher temperatures up to +110 °C
    Add to watchlist
    Downloads CAD-Download e-Learning
    Application The specific head design provides a high vibration stability and impact resistance. Besides this we achieve higher tensile strengths compared to our standard polyamide cable ties.
    Brand Family Z-Series
    Color Black (BK)
    Min. Tensile Strength (imperial) 80lbs
    Min. Tensile Strength (metric) 355N
    PART DESCRIPTION Z80R-PA66HSW-BK
    Packaging Type bag
    Part No. 107-00004
    Product family Cable Ties
    Product family Cable Ties
    Type Z80R
    Identification Plate Position none
    Length (imperial) 7.87"
    Length (metric) 200mm
    Max. Bundle Diameter (metric) 50.0mm
    Min. Bundle Diameter (metric) 1.5mm
    Releasable Closure No
    Thickness (metric) 1.3mm
    Width (imperial) 0.20"
    Width (metric) 5mm
    EN 45545-2 Results R22 HL1, R23 HL2
    Flammability UL 94 V-2
    Halogen Free Yes
    Material PA66HSUV
    Material Polyamide 6.6 heat and UV-resistant (PA66HSUV)
    Operating Temperature -40°F to +230°F (-40°C to +110°C)
    REACH Conformity Yes
    ROHS compliant Yes
    Packaging 1 - Weight (kg) 0.16kg
    Pkg. Qty. 100
    Pkg. Qty. 100Pieces
