SamplePackSOFTGRIP-DIV-MIX


Art.-No. 905-50082

| SamplePackSOFTGRIP-DIV-MIX

 |

Copied

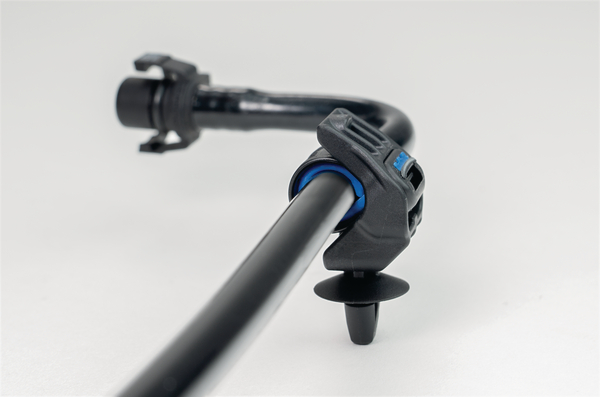

Soft Grip Cable Tie assembled with Soft Grip Mount for holes (arrowhead) and a hose for fluid management.
Soft Grip Cable Tie assembled with Soft Grip Mount for screw fixing.
Soft Grip Cable Tie assembled with Soft Grip Mount for holes (arrowhead).
Soft Grip Cable Ties (2-component cable ties).
Soft Grip Cable Tie assembled with Soft Grip Mount for holes (arrowhead) and the application tool EVO9 SG.

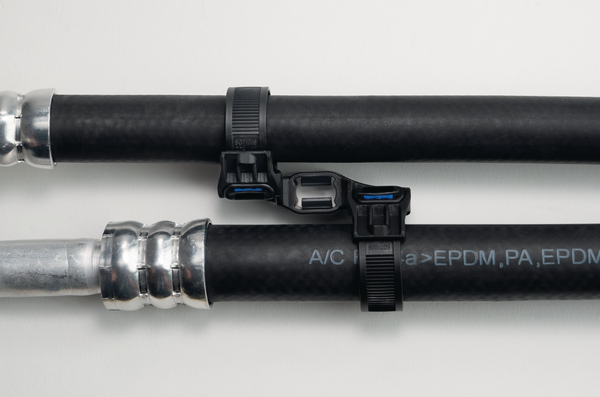

The Soft Grip Tie in combination with the Soft Grip Mount for studs (weld studs) for parallel guidance of hoses in fluid management.

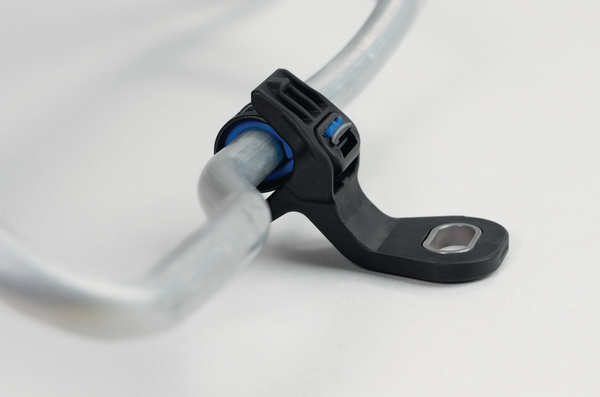

Soft Grip Cable Tie assembled with Soft Grip Mount for screw fixing e.g. for fluid management / air conditioning pipes.
Soft Grip Cable Tie assembled with Soft Grip Mount for studs (weld stud).
Soft Grip Cable Tie assembled with Soft Grip Mount for holes (arrowhead) and hoses for fluid management.

    • Sample pack contains Soft Grip mounts pre-loaded with 2-component Soft Grip cable ties
    • Soft Grip cable ties grip smooth and sensitive bundles securely without damage and effectively inhibit lateral bundle movements
    • Soft TPE inner layer protects perfectly against vibration and rattling
    • Suitable for a variety of fastening applications thanks to different footparts (holes, for studs, for screw fixing)
    • Semi-customised part design – Soft Grip cable tie head retention is standardised, the rest of the mount is adaptable
    Add to watchlist
    Downloads
    Application The Soft Grip-Series consists of 2-component cable ties (PA66HS and TPE) and Soft Grip mounts that can be combined to make highly versatile fasteners. It is designed for the flexible and easy bundling and fastening of smooth and sensitive bundles, such as pipes in vehicle fluid management applications.
    One Soft Grip cable tie can replace a number of different P-Clamp diameters. The combined part can reduce significantly help reduce individual part inventory and installation complexity. The Soft Grip Series is a unique semi-customised part solution designed to save time, money and development effort. The footparts of the mounts can be adjusted to individual customer requirements.
    Colour Various (MIX)
    Material Various (DIV)
    PART DESCRIPTION SamplePackSOFTGRIP-DIV-MIX
    Product Family Sample Pack
    Type SamplePackSOFTGRIP
    Weight/Unit 0.06kg
    Weight/Unit 0.06kg
    CAS Number 3896-11-5
    Critical Substance Bumetrizole (UV-326) >0.11 %
    EC Number 223-445-4
    ELV compliant (Article 4 - 2) Yes
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026684871
    Packaging 1 - Height (m) 0.06m
    Packaging 1 - Length (m) 0.335m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.004422m³
    Packaging 1 - Weight (kg) 0.072743kg
    Packaging 1 - Width (m) 0.22m
