Cable tie outside serrated for narrow space, 350x9mm, ⌀25-92mm, black, 100pcs.
Art.-No. 112-00081 | SPH350-PA66HS-PA66HS-BK

Copied
  • Made from post-industrial recycled and post-consumer recycled PA66
  • Excellent UV resistance for long-term outdoor use (20 years)
  • Outside serration design with an anti-slip feature on the inside to prevent lateral movement of sensitive cables and bundles
  • Low profile head, ideal for use in narrow spaces
  • Low insertion force enables quick, tool-free manual installation
  • Pre-locking position supports secure placement before final installation
  • Installer-friendly packaging: belt clip and multiple openings
Show more

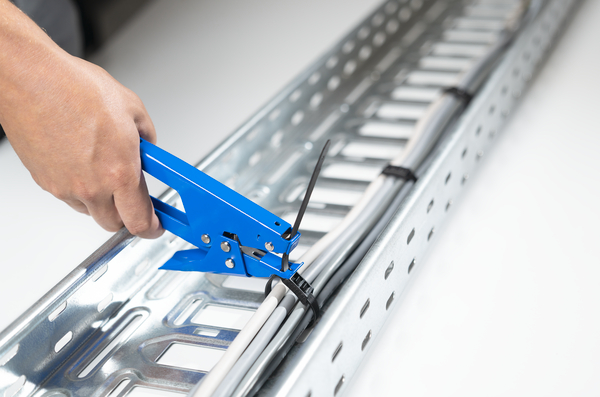

Application The low profile head cable ties from the SPH-Series meet a wide range of needs. They can be installed both indoors and outdoors, thanks to their UV resistance. They are particularly valued for cable tray installations as well as in the construction sector. These ties are also increasingly used in industrial applications.
Cable Tie Polyamide 6.6 recycled (PA66(REC100))
Colour Black (BK)
Fixation Method Cable Tie
Identification Plate Position none
Key product features for narrow space
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION SPH350-PA66HS-PA66HS-BK
Pack Cont. 100pcs.
Product Family SPH-Series
Product Group Cable ties with low profile head
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type SPH350-PA66HS
Variant Outside Serrated
Bundle ⌀ 25-92mm
Bundle ⌀ max. 92mm
Bundle ⌀ min. 25mm
Length (L) 350mm
Mechanical Strength 800N
Min.Tensile Strength 800N
Thickness (T) 1.26mm
Weight/Unit 0.0059kg
Width (W) 9mm
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 3926909790
GTIN-13 / EAN 4031026770482
Packaging 1 - Height (m) 0.088m
Packaging 1 - Length (m) 0.376m
Packaging 1 - Qty 100
Packaging 1 - Type box
Packaging 1 - Volume (m³) 0.0033088
Packaging 1 - Width (m) 0.100m
Packaging 3 - Height (m) 0.200m
Packaging 3 - Length (m) 0.600m
Packaging 3 - Qty 1000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 6.647kg
Packaging 3 - Width (m) 0.400m
Packaging 4 - Height (m) 1.3m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 20000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.248
Packaging 4 - Weight (kg) 157.94kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
