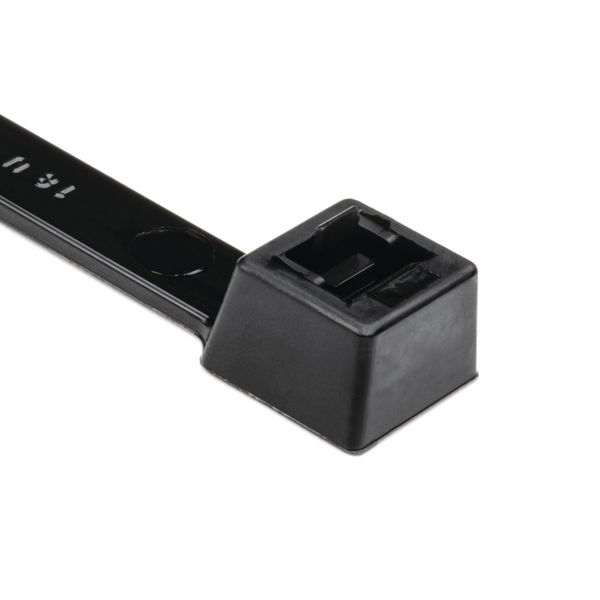

Releasable cable tie, 535.0x8.8mm, ⌀8.0-150.0mm, 780N, black, 25pcs.

Art.-No. 115-00037

| RT150MEP-PA66-BK

|

Releasable cable tie features a head design with extended pawl for quick release of bundles.

Extended trigger for simple and quick release of ties
Multiple grades of PA 6.6 for use indoors, outdoors or at high temperatures

Add to watchlist

Downloads e-Learning

More products in this product group:

Releaseble Cable Ties

Base Data

Application	Used in a wide range of industries these releasable and reusable ties are ideal where temporary installation, or, the addition or removal of cables is required, e.g. Theatres, outdoor events or prototype harnessing work.
Colour	Black (BK)
Fixation Method	Releasable Cable Tie
Identification Plate Position	none
Key product features	releasable
Material	Polyamide 6.6 (PA66)
Min.Tensile Strength	780N
PART DESCRIPTION	RT150MEP-PA66-BK
Package Content	25pcs.
Package Content packed in	pack
Product Family	RT Series With Extended Pawl
Product Group	Releaseble Cable Ties
Releasable Closure (Yes/No)	Yes
Tie Closure	plastic pawl
Type	RT150MEP
Typical Application	Used in a wide range of industries these releasable ties are ideal where temporary installation, or, the addition or removal of cables is required, e.g. Theatres, outdoor events or prototype harnessing work.
UV-Stabilised	Yes
Variant	Inside Serrated

Product Dimensions


Bundle ⌀	8.0-150.0mm
Bundle ⌀ max.	150.0mm
Bundle ⌀ min.	8.0mm
Length (L)	535.0mm
Strap Width max. (G)	0.346"
Strap Width max. (G)	8.8mm
Width (W)	8.8mm

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 V2
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Reusable (Yes/No)	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	US
GTIN-13 / EAN	4031026416106
Packaging 1 - Qty	25
Packaging 1 - Type	pack
Packaging 3 - Height (m)	0.225m
Packaging 3 - Length (m)	0.84455m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0446m³
Packaging 3 - Width (m)	0.23495m

More Information

ETIM 7.0 Key	EC000046
ETIM 8.0 Key	EC000046
ETIM 9.0 Key	EC000046
UNSPSC Key	39121703
