23/04/2024

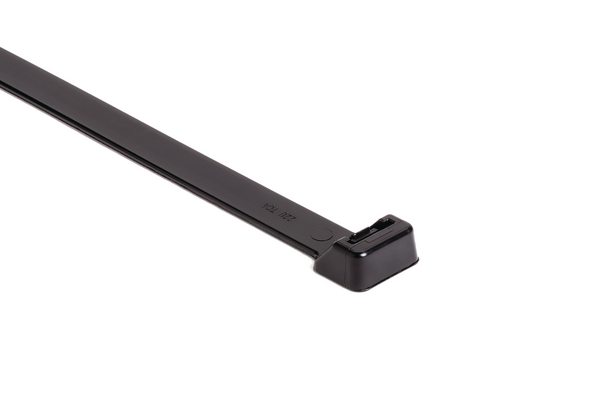

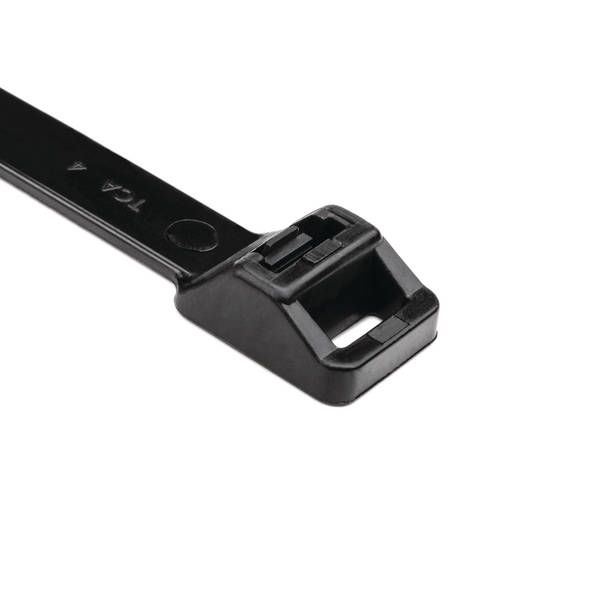

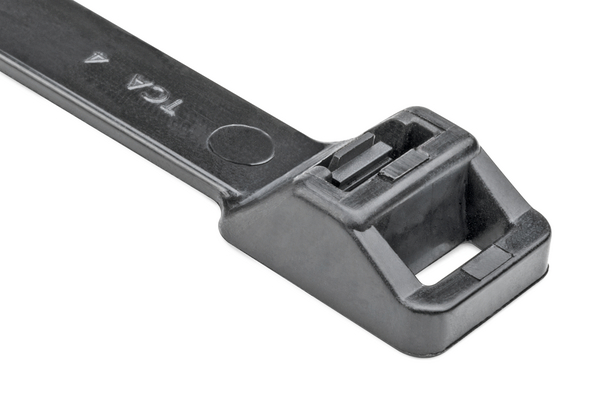

Releasable cable tie, 370.0x12.6mm, Ø13.0-100.0mm, 1115N, black, 25pcs.
Art.-No. 115-42101 | SR255X-PA66HIRHSUV-BK |  Details

Heavy duty cable tie features a release in the head for easier bundle maintenance.

    • Releasable and reusable cable tie
    • Suitable for lager and heavier bundles
    • Extended trigger for simple and quick release of ties
    • Protected trigger to avoid accidental release
    Package size
    Add to watchlist
    Downloads
    Application SR255 Series heavy-duty cable ties offer a release feature in the head allowing for easy installation with the use of a cable tie tool. The head design guarantees high tensile strength even after repeated use, as well as a low insertion force.
    Colour Black (BK)
    Fixation Method Releasable Cable Tie
    Identification Plate Position none
    Key product features releasable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Pack Cont. 25pcs.
    Package Content packed in bag
    PART DESCRIPTION SR255X-PA66HIRHSUV-BK
    Product Family SR255-Series
    Product Group Cable ties releasable for heavier bundles
    Releasable Closure (Yes/No) Yes
    Bundle Diameter max (metric) 100.0mm
    Bundle ∅ 13.0-100.0mm
    Bundle ∅ min. 13.0mm

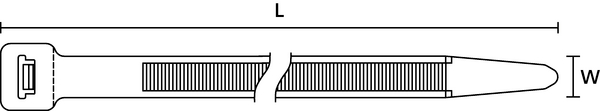

    Length (L) 370.0mm
    Min.Tensile Strength 1115N
    Strap Width max. (G) 12.5mm
    Strap Width max. (G) 0.49"
    Weight/Unit 0.009788kg
    Width (W) 12.6mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026424484
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.15m
    Packaging 1 - Qty 25
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00222m³
    Packaging 1 - Weight (kg) 0.244701kg
    Packaging 1 - Width (m) 0.37m
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Qty 500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 5.51402kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.209m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 10000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.161m³
    Packaging 4 - Weight (kg) 131.28kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
