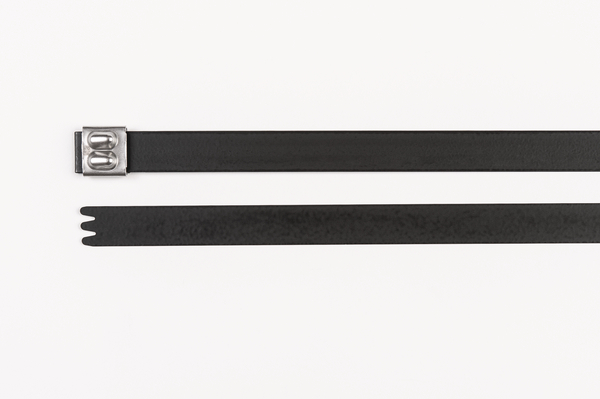

Double wrap cable ties with ball-lock and coating : MBT27XHDFC
Stainless Steel Cable Tie 681x12.3 mm, black, Article number: 111-01505
Features
- MBT cable ties, made from stainless steel SS316 with a polyester coating
- Non-releasable locking feature
- Double wrap operation
- Corrosion resistant
- Weather resistant
- Outstanding chemical resistance
- High temperature resistant
- Non-burning
Certifications & Approvals
Application
The MBT range of stainless steel cable ties can be used in the most arduous of conditions or where the additional security, strength and fire resistance of a metal fixing is required. Used in all industries from mass transit, ship building, oil rigs, mining and chemical industry, theatres and exhibition halls. In the event of a fire, cables will remain securely held in place and will not fall to block emergency exits. Fully coated ties can also be used to avoid any reflection. An important consideration for instance in the defence industry.
MBTXHDFC- / MBTUHDFC-Series, stainless steel 316 is suitable for following markets and industries
-
Solar Energy Sector
-
Wind Energy Sector
-
Rail Transportation Sector
-
Electronics Industry
-
Shipbuilding
-
Defence Industry
More products in this product group
Double wrap cable ties with ball-lock and coating >| Application Tool | KST-STG200, HDT16, MK9SST, MK9PSST |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Pack Cont. | 50pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | MBT27XHDFC-SS316/SP-BK |
| Product Family | MBTXHDFC- / MBTUHDFC-Series, stainless steel 316 |
| Product Group | Double wrap cable ties with ball-lock and coating |
| Releasable Closure (Yes/No) | No |
| Short Description | Stainless Steel Cable Tie 681x12.3 mm, black |
| Tie Closure | ball bearing lock |
| Variant | No Serration |
|
|
|
| Bundle ∅ max. | 100mm |
| Bundle ∅ min. | 17mm |
| Length (L) | 681mm |
| Min.Tensile Strength | 2500N |
| Thickness (T) | 0.38mm |
| Width (W) | 12.3mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | non-burning (except coating) |
| Halogenfree | Yes |
| Hazardous good | No |
| Limited Fire Hazard | Yes |
| Material | Stainless Steel (SS316), Polyester (SP) |
| Operating Temperature - °C | -80 °C to +538 °C |
| Operating Temperature Coating | -50 °C to +150 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 5022660341588 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.389m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00123m³ |
| Packaging 1 - Weight (kg) | 1.1kg |
| Packaging 1 - Width (m) | 0.09m |
| Weight | 1.1kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
