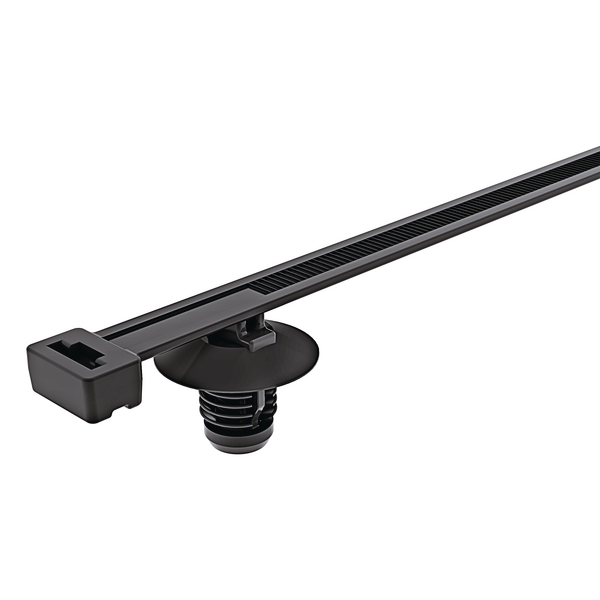

Fixing tie for hole (round), Ø6.0-40.0mm, black, 100pcs.
Art.-No. 157-00076 | CM200FT9J-PA66HSW-BK |  Details

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Suitable for use within threaded holes
    • Reusable - Less waste and less pollution of the environment
    Show more
    Add to watchlist
    Downloads
    Application This fir tree design is ideal for use in thick panels and threaded, blind holes. The additional disc avoids the intrusion of dust and dirt.
    Application Tool ProCut 9 no battery, MK9P, MK9P w/ Upper air, MK10-SB, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
    Colour Black (BK)
    Description For fixing cable bundles on panels
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
    Pack Cont. 100pcs.
    Package Content packed in bag
    PART DESCRIPTION CM200FT9J-PA66HSW-BK
    Product Family for round holes, releasable
    Product Group 1-piece fixing ties with fir tree, with disc
    Releasable Closure (Yes/No) Yes
    Tie Closure plastic pawl

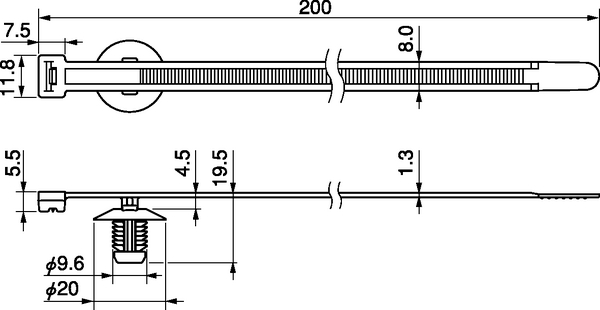

    Bundle Diameter max (metric) 40.0mm
    Bundle ∅ 6.0-40.0mm
    Bundle ∅ min. 6.0mm
    Disc ∅ 20mm
    for Hole ∅ (FH) 8.8 - 9.2 mm
    for Panel Thickness min - max 2.3 - 6 mm
    for Panel Thickness min - max 0.1 - 0.2 "
    Length (L) 200mm
    Min.Tensile Strength 300N
    Panel Thickness max. 2.3 – 6.0mm
    Thickness (T) 1.3mm
    Weight/Unit 0.003444kg
    Width (W) 8.0mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Min. Extraction Force (N) 250N
    Operating Temperature -40 °C to +110 °C
    Specifications
    Country of Origin JP
    Customs Number 39269097
    GTIN-13 / EAN 4944387957693
    Packaging 1 - Height (m) 0.065m
    Packaging 1 - Length (m) 0.27m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00439m³
    Packaging 1 - Weight (kg) 0.344401kg
    Packaging 1 - Width (m) 0.25m
    Packaging 3 - Height (m) 0.3m
    Packaging 3 - Length (m) 0.455m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.043m³
    Packaging 3 - Weight (kg) 3.82401kg
    Packaging 3 - Width (m) 0.315m
    Packaging 4 - Height (m) 1.044m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 15000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.002m³
    Packaging 4 - Weight (kg) 78.36kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
