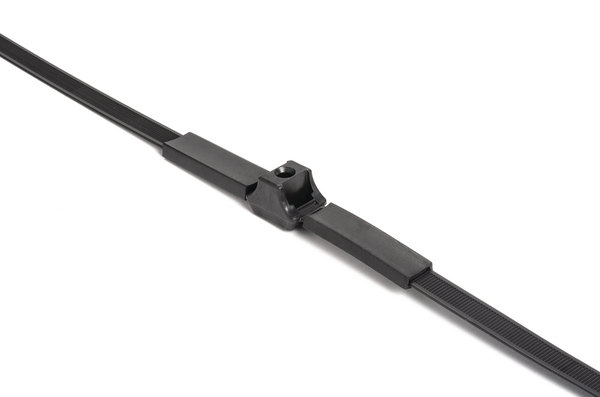

Fixing tie for stud, inside serrated, ⌀6.4-58.0mm, black, 500pcs.
Art.-No. 115-00145
| DCT11SLVH1-PA66HIRHSUV-BK
Copied
- Provides dual separation between bundles to prevent chafing and abrasion.
- 150lb tensile strength ensures enough strength for heavy duty applications.
- Straps are releasable for increased serviceability.
More products in this product group:
| Application | Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured. |
| Brand Family | DCT-Series |
| Color | Black (BK) |
| Description | Dual-Clamp Ties are designed to provide parallel separation between hoses, wires, cables, and tubing to protect them from abrasion. These ties have an optional mounting hole for securing bundles along the chassis of trucks, trailers, and heavy-duty equipment. The unique one-piece design features the dual head centered on the strap. |
| Min. Tensile Strength (imperial) | 150lbs |
| Min. Tensile Strength (metric) | 667N |
| PART DESCRIPTION | DCT11SLVH1-PA66HIRHSUV-BK |
| Packaging Type | pack |
| Part No. | 115-00145 |
| Product family | 1-Piece Tie Assemblies |
| Product family | Products to use on studs |
| Short Desc. | Dual Clamp Tie with Neoprene Sleeving, 0.25" Stud Dia, 2.30" Max Bundle Dia,150lb, PA66HIRHSUV, Black, 500/pkg |
| Type | DCT11SLVH1 |
| UV Resistant | Yes |
| Cable Tie Closure | plastic pawl |
| Fixation Method | Weld Stud Fixing |
| Height (imperial) | 0.75" |
| Height (metric) | 19.1mm |
| Identification Plate Position | none |
| Length (imperial) | 19.25" |
| Length (metric) | 489.0mm |
| Max. Bundle Diameter (imperial) | 2.28" |
| Max. Bundle Diameter (metric) | 58.0mm |
| Max. Mounting Hole Diameter (imperial) | 0.20" |
| Min. Bundle Diameter (imperial) | 0.25" |
| Min. Bundle Diameter (metric) | 6.4mm |
| Min. Mounting Hole Diameter (imperial) | 0.20" |
| Mounting Hole Diameter (imperial) | 0.20 " |
| Mounting Hole Diameter (metric) | 6.2 mm |
| Mounting Hole Shape | Round |
| Releasable Closure | No |
| Stud Diameter (imperial) | 0.25" |
| Stud Diameter (metric) | 6.35 mm |
| Width (imperial) | 0.504" |
| Width (metric) | 12.8mm |
| Width 2 (imperial) | 0.70" |
| Width 2 (metric) | 19.7mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
DCT11-PA66HIRHSUV-BK
115-00144
