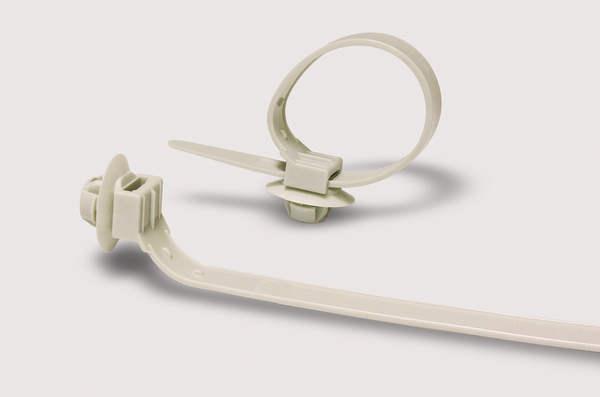

Fixing tie for hole (round), ⌀23.0-36.5mm, beige, 50pcs.

Art.-No. 126-00344

| OS180-PM14-PA66-BGE

|

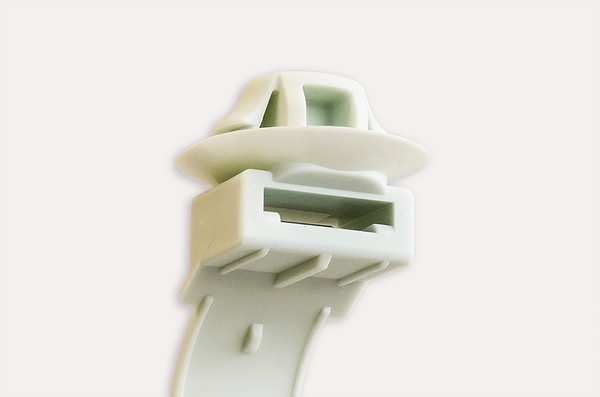

Easily fixed just by inserting into the hole. Screw and bolt stopper is unnecessary
Could be used for plastic flexible conduits of diameter 16, 22 and 28
Since the ribs prevent sideways slippage, the plastic flexible conduit can be fixed firmly

Add to watchlist

Downloads e-Learning

More products in this product group:

Low profile pushmount tie for supporting plastic flexible conduit

Base Data

Colour	Ivory (IV)
Fixation Method	arrowhead
Identification Plate Position	none
Material	Polyamide 6.6 (PA66)
Min.Tensile Strength	392N
PART DESCRIPTION	OS180-PM14-PA66-BGE
Package Content	50pcs.
Package Content packed in	bag
Product Family	for round holes
Product Group	Low profile pushmount tie for supporting plastic flexible conduit
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	OS180-PM14

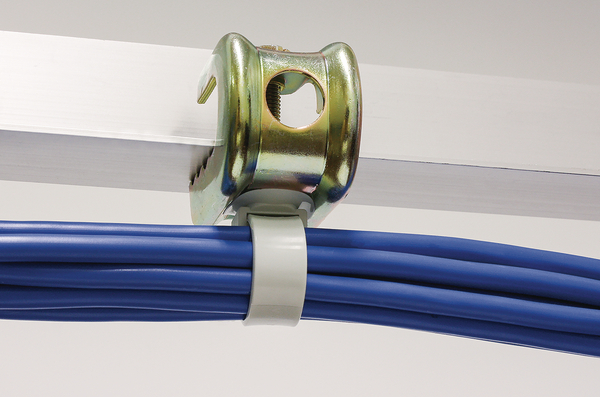

Typical Application	Corresponding to φ14mm hole, it is applicable to various types of metal fittings

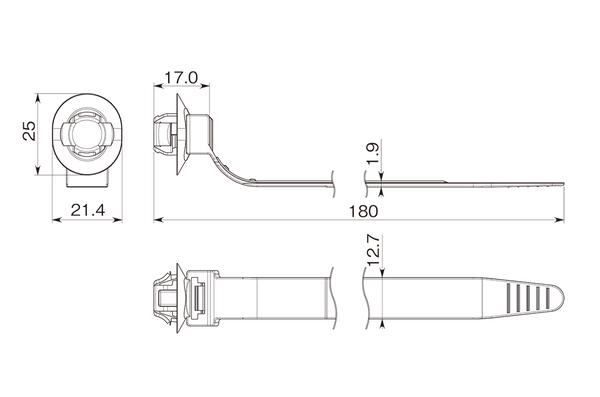

Product Dimensions

Bundle ⌀	23.0-36.5mm
Bundle ⌀ max.	36.5mm
Bundle ⌀ min.	23.0mm
Length (L)	180.0mm
Thickness (T)	1.9mm
Width (W)	12.7mm
for Hole ⌀ (FH)	13.8 - 14.2 mm
for Panel Thickness min - max	2 - 2.3 mm

Downloads

Specifications

Flammability	UL 94 V2
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	JP
GTIN-13 / EAN	4944387117813

More Information

ETIM 7.0 Key	EC000046
ETIM 8.0 Key	EC000046
ETIM 9.0 Key	EC000046
UNSPSC Key	39121703
