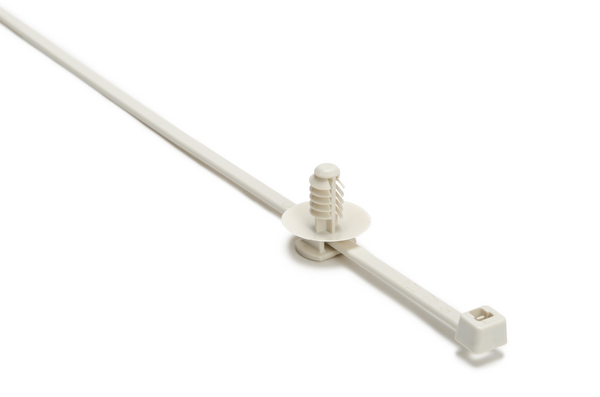

Fixing tie for hole (round), ⌀1.5-50.8mm, beige, 500pcs.
Art.-No. 156-01513 | PAT100LFT6LG-PAEK-BGE

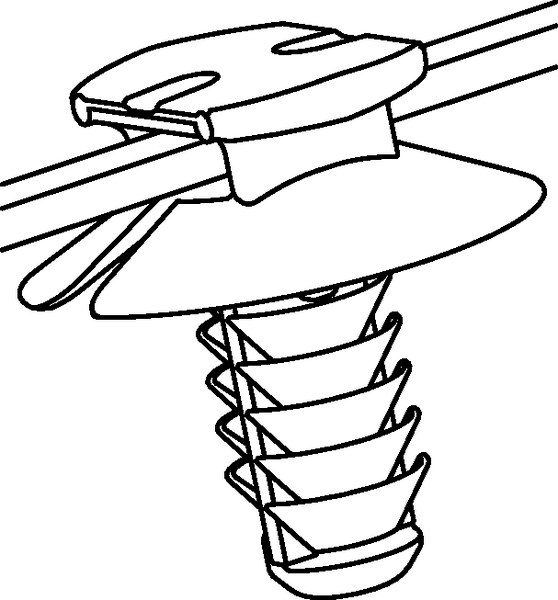

Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation.
Fir tree provides low insertion effort yet demonstrates high extraction resistance.
Disc feature prevents rattling in high-vibration applications and protects against debris ingress.

More products in this product group:

Application	Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Color	Beige (BGE)

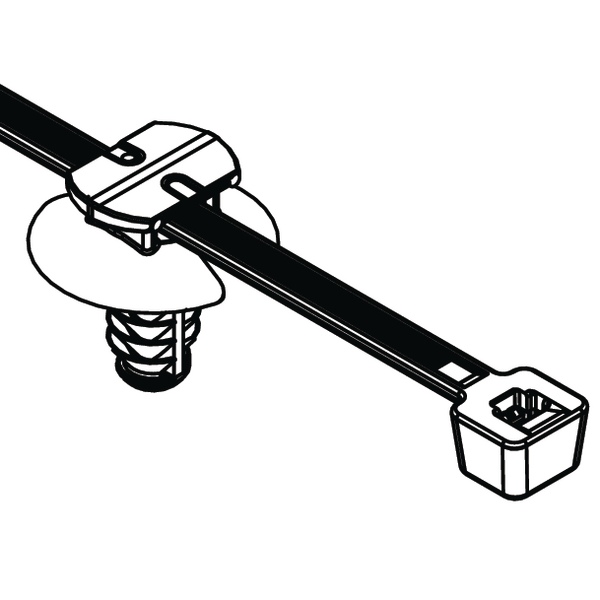

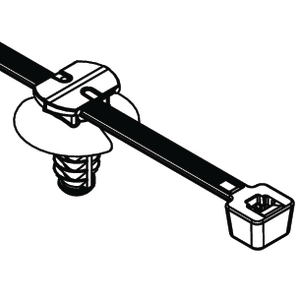

Description	HellermannTyton’s fir tree mounts provide a secure grip in a mounting hole. The mount can slide along the cable tie to adjust orientation as needed. Fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie.
Min. Tensile Strength (imperial)	100lbs
Min. Tensile Strength (metric)	445N
PART DESCRIPTION	PAT100LFT6LG-PAEK-BGE
Packaging Type	pack
Part No.	156-01513
Product family	2-Piece Tie Assemblies
Product family	Fixing ties for holes
Short Desc.	2-Piece Cable Tie with Fir Tree Mount, 7.9"L, 0.22 - 0.25" Mounting Hole, 100lb, PAEK, Beige, 500/bg
Type	PAT100LFT6LG
UV Resistant	No


Cable Tie Closure	plastic pawl
Disc Diameter (imperial)	0.73"
Disc Diameter (metric)	18.6mm
Fixation Method	Fir tree for round holes
Height (imperial)	0.75"
Height (metric)	19.20mm
Height 2 (imperial)	0.50"
Height 2 (metric)	12.70mm
Identification Plate Position	none
Length (imperial)	7.9"
Length (metric)	200.7mm
Length 2 (imperial)	0.35"
Length 2 (metric)	9.0mm
Length 3 (imperial)	0.75"
Length 3 (metric)	19.2mm
Max. Bundle Diameter (imperial)	2.0"
Max. Bundle Diameter (metric)	50.8mm
Max. Hole Depth (imperial)	0.24"
Max. Hole Depth (metric)	6.0mm
Max. Mounting Hole Diameter (imperial)	0.25"
Max. Panel Thickness (imperial)	0.24"
Max. Panel Thickness (metric)	6.0mm
Min. Bundle Diameter (imperial)	0.06"
Min. Bundle Diameter (metric)	1.5mm
Min. Hole Depth (imperial)	0.05"
Min. Hole Depth (metric)	1.25mm
Min. Mounting Hole Diameter (imperial)	0.22"
Min. Panel Thickness (imperial)	0.05"
Min. Panel Thickness (metric)	1.25mm
Mounting Hole Diameter (imperial)	0.22 - 0.25 "
Mounting Hole Diameter (metric)	5.6 - 6.4 mm
Mounting Hole Shape	Round
Panel Thickness (imperial)	0.05 - 0.24"
Panel Thickness (metric)	1.25 - 6.0mm
Width (imperial)	0.33"
Width (metric)	8.0mm
Width 3 (imperial)	0.2"
Width 3 (metric)	5.0mm

Customs Number (Schedule B)	3926909988
Harmonized Tariff Schedule Code	3926.90.9989
Pkg. Qty.	500
Pkg. Qty.	500Pieces
