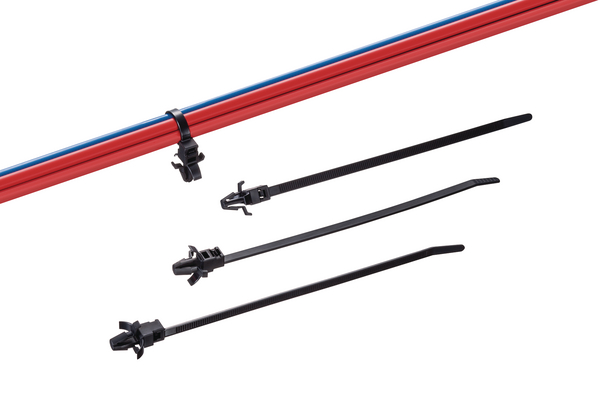

Fixing tie for hole (round), ⌀1.5-35mm, black, 100pcs.
Art.-No. 115-00194 | RR50SWPM7-PA66HSW-BK

Copied
  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited
  • Releasable and therefor reusable
Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
Colour Black (BK)
Fixation Method arrowhead
Identification Plate Position none
Key product features releasable
Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
Min.Tensile Strength 225N
PART DESCRIPTION RR50SWPM7-PA66HSW-BK
Package Content 100pcs.
Package Content packed in bag
Product Family for round holes, releasable
Product Group 1-piece fixing ties with arrowhead, with wings
Releasable Closure (Yes/No) Yes
Type RR50SWPM7
Bundle ⌀ 1.5-35mm
Bundle ⌀ max. 35mm
Bundle ⌀ min. 1.5mm
Length (L) 170mm
Width (W) 4.8mm
for Hole ⌀ (FH) 6.9 - 7.1 mm
for Panel Thickness min - max 1 - 2.6 mm
Flammability UL 94 V2
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
Country of Origin JP
GTIN-13 / EAN 4944387126433
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
