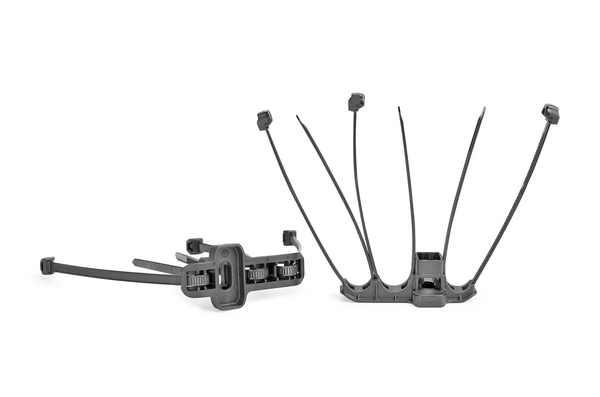

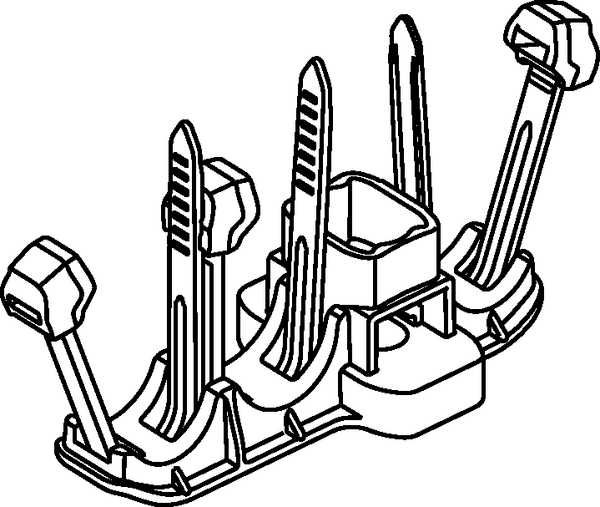

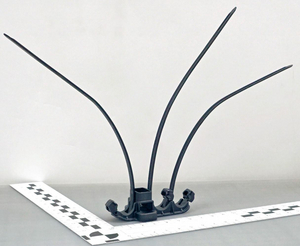

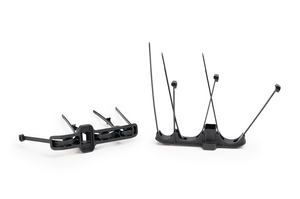

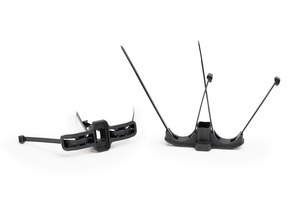

Fixing tie for stud, outside serrated, ⌀6.0-13.00mm, black, 250pcs.
Art.-No. 156-03539 | S50ROSCTM15D13SB5-6-PP-BK

Copied
  • Oval housing for welding studs enables tolerance compensation during assembly
    Supports a wider range of cable diameters for parallel bundling
    Cable tie head can be repositioned for ideal alignment with the cable bundle
    ‘Soft-push’ design enables effortless, tool-free manual assembly by hand
    Integrated retaining rib secures corrugated cables (e.g. protective conduits) and provides additional stability and protection in dynamic environments
    Made from PP, it offers a sustainable solution with low weight, chemical resistance, and a reduced CO₂ footprint compared to conventional materials
Application With our new “WAVE FIXING” products, we meet the increasing demand of parallel cable routing for electric vehicles.
Colour Black (BK)
Fixation Method Stud Mount
Key product features for multiple routing
Material Polypropylene (PP)
PART DESCRIPTION S50ROSCTM15D13SB5-6-PP-BK

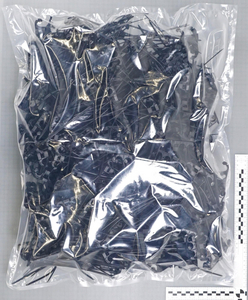

Package Content 250pcs.
Package Content packed in bag
Product Family multi parallel routing, outside serrated
Product Group Fixing ties for weld studs
Tie Closure plastic pawl
Type S50ROSCTM15D13SB5-6
Variant Outside Serrated with AntiSlip Engraving
Weight/Unit 0.007847kg
Attach to ⌀ 6.0 mm - 15.0
Bundle ⌀ 6.0-13.00mm
Bundle ⌀ 2 max. 15.00mm
Bundle ⌀ max. 13.00mm
Bundle ⌀ min. 6.0mm
Height (H) 21.0mm
Length (L) 65.8mm
Stud ⌀ M5, M6, T5, T6
Thickness (T) 1.45mm
Width (W) 30.0mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
ROHS compliant Yes
Reusable (Yes/No) No
Specifications
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>ReSource highlights HellermannTyton products that are made from recycled waste or from virgin materials with relatively lower carbon emissions. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
ReSource highlights HellermannTyton products that are made from recycled waste or from virgin materials with relatively lower carbon emissions.
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026745091
Packaging 1 - Height (m) 0.13m
Packaging 1 - Length (m) 0.65m
Packaging 1 - Qty 250
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.046475
Packaging 1 - Weight (kg) 2.02963kg
Packaging 1 - Width (m) 0.55m
Packaging 3 - Height (m) 0.538m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 1000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.1213
Packaging 3 - Weight (kg) 9.21852kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.22m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 8000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.171
Packaging 4 - Weight (kg) 94.752kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
