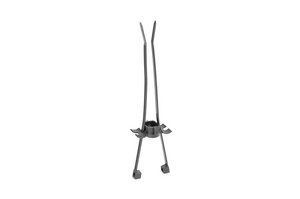

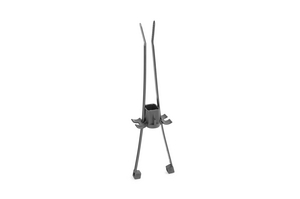

Fixing tie for stud, outside serrated, ⌀2.0-45.0mm, black, 500pcs.
Art.-No. 156-03077
| S50ROSDSB5-6H-PP/PA66HIRHS-BK
|
Copied
- Pre-assembled 2-piece fixing tie with stud retainer
- For parallel routing of cables, hoses or harnesses
- Cable tie head can be moved after bundling
- The outside serration design ensures gentle handling of sensitive cables and bundles, reducing the risk of damage during installation and maintenance
- With an anti-slip feature on the inside, the S50ROS prevents undesired lateral movement of cables and bundles, maintaining tidy and organized cable management within vehicles
- For 5 and 6 mm studs or 5 and 6 mm ISO threaded studs
Show more
Show less
More products in this product group:
| Application | Used for securing and routing cables, pipes and hoses parallel to panels, frames and other structures. The stud fixing mount combined with the cable tie enables defined bundle positioning and organised routing in applications where space and routing direction require controlled cable management. |
| Cable Tie | Polypropylene (PP) |
| Colour | Black (BK) |
| Description | Fixing tie for stud, outside serrated, ⌀2.0-45.0mm, black |
| Fixation Method | Stud Mount |
| Foot Part | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Identification Plate Position | none |
| Key product features | for multiple routing |
| Material | Polypropylene (PP), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Min.Tensile Strength | 185N |
| PART DESCRIPTION | S50ROSDSB5-6H-PP/PA66HIRHS-BK |
| Package Content | 500pcs. |
| Product Family | Fixing tie for stud |
| Product Group | Fixing tie for stud |
| Releasable Closure (Yes/No) | No |
| Short Description | S50ROS cable tie with fixing element for studs T5, M5, T6, M6 and parallel routing. |
| Tie Closure | plastic pawl |
| Type | S50ROSDSB5-6H |
| Variant | Outside Serrated with AntiSlip Engraving |
| Weight/Unit | 0.004625kg |
| Bundle ⌀ | 2.0-45.0mm |
| Bundle ⌀ max. | 45.0mm |
| Bundle ⌀ min. | 2.0mm |

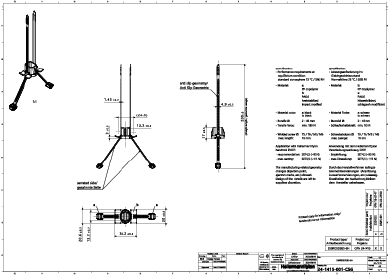

| Cable Tie Head Height (metric) | 7.5mm |
| Cable Tie Head Length (metric) | 8.3mm |
| Cable Tie Head Width (metric) | 8.95mm |
| Height (H) | 1.45mm |
| Height (H2) | 17.0mm |
| Length (L) | 200.0mm |
| Length (L2) | 34.2mm |
| Max Stud Length | 16.0mm |
| Stud ⌀ | T5, T6, M5, M6 |
| Thickness (T) | 1.45mm |
| Width (W) | 4.9mm |
| Width (W2) | 20.6mm |
| ELV compliant (Article 4 - 2) | Yes |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +110 °C, (3000 h) |
| ROHS compliant | Yes |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. ReSource highlights HellermannTyton products that are made from recycled waste or from virgin materials with relatively lower carbon emissions. |
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026763163 |
| Packaging 1 - Height (m) | 0.12m |
| Packaging 1 - Length (m) | 0.68m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.046104m³ |
| Packaging 1 - Weight (kg) | 2.380388kg |
| Packaging 1 - Width (m) | 0.565m |
| Packaging 3 - Height (m) | 0.538m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.1213m³ |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Type | pallet |
| Packaging 4 - Width (m) | 0.8m |
