Fixing tie for stud, outside serrated, ⌀4.0-45.0mm, black, 500pcs.
Art.-No. 156-03588 | S50ROSDSBS5-PP/PA66HIRHS-BK

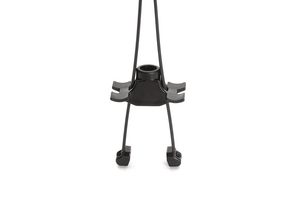

Pre-assembled 2-piece fixing tie with stud retainer
For parallel routing of cables, hoses or harnesses
Cable tie head can be moved after bundling
The S50ROS features a significantly lower CO₂ footprint compared to cable ties made of standard material, in line with sustainability goals in various industries
The outside serration design ensures gentle handling of sensitive cables and bundles, reducing the risk of damage during installation and maintenance
With an anti-slip feature on the inside, the S50ROS prevents undesired lateral movement of cables and bundles, maintaining tidy and organized cable management within vehicles
For 5 mm studs or 5 mm ISO threaded studs

Application	S-Series cable ties made from Polypropylene (PP) are non hydroscopic, offer a higher chemical resistance and reduced CO2 footprint compared to a standard cable tie material. These cable ties are used to bundle and secure cables, pipes and/or hoses.
Brand Family	SBS-Series
Color	Black (BK)
Key product features	for multiple routing
Min. Tensile Strength (metric)	185N
PART DESCRIPTION	S50ROSDSBS5-PP/PA66HIRHS-BK
Packaging Type	bag
Part No.	156-03588
Product family	2-Piece Tie Assemblies
Product family	Products for parallel/multiple routing, Products to use on studs, Products for wires and hoses
Type	S50ROSDSBS5

Cable Tie Closure	plastic pawl
Fixation Method	Weld Stud, sideways, assembled, 2 piece
Height (metric)	1.3mm
Height 2 (metric)	15.0mm
Identification Plate Position	none
Length (metric)	200.00mm
Length 2 (metric)	20.0mm
Max. Bundle Diameter (metric)	45.0mm
Min. Bundle Diameter (metric)	4.0mm
Releasable Closure	No
Stud Diameter (metric)	5.0 mm
Thickness (metric)	1.45mm
Width (metric)	4.90mm
Width 2 (metric)	30.0mm

Cable Tie	Polypropylene (PP)
Halogen Free	Yes
Material	PP, PA66HIRHS
Material	Polypropylene (PP), Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Material Foot Part	PA66HIRHS
Operating Temperature	-40°F to +230°F (-40 °C to +110 °C), (3000 h)
REACH Conformity	Yes
ROHS compliant	Yes
