18/09/2025

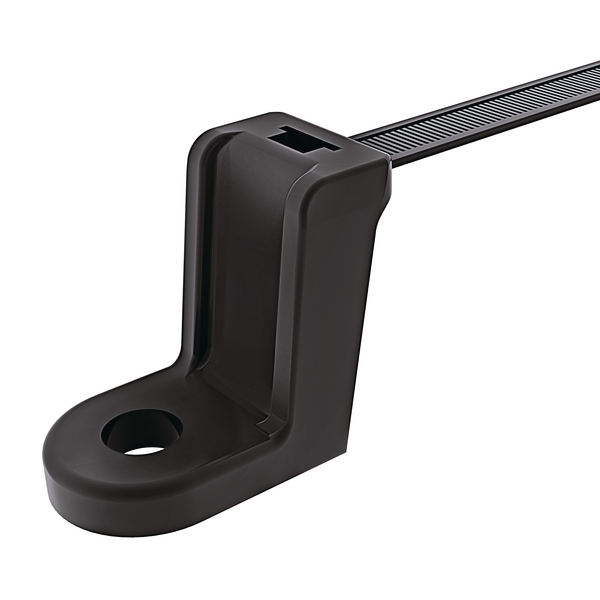

Fixing tie for stud, ⌀5.0-60.0mm, black, 25pcs.
Art.-No. 157-00021 | SBT120-M12-PA66HSUV-BK |

Copied
The superior design of the SBT120-M Series makes them suitable for complex applications.

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    • Cable Tie head always situated in defined position
    • Easy to install without the need for a tool
    • Bundles are routed very close to stud
    Add to watchlist
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
    Min.Tensile Strength 533.4N
    Mounting Screw Type M12 Screw
    PART DESCRIPTION SBT120-M12-PA66HSUV-BK
    Package Content 25pcs.
    Package Content packed in bag
    Product Family For cable routing alongside the stud
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) Yes
    Tie Closure plastic pawl
    Type SBT120-M12
    UV-Stabilised Yes
    Bundle ⌀ 5.0-60.0mm
    Bundle ⌀ max. 60.0mm
    Bundle ⌀ min. 5.0mm
    Length (L) 300.0mm
    Stud ⌀ M12
    Thickness (T) 1.4mm
    Width (W) 13.0mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
    Country of Origin JP
    GTIN-13 / EAN 4944387931082
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
