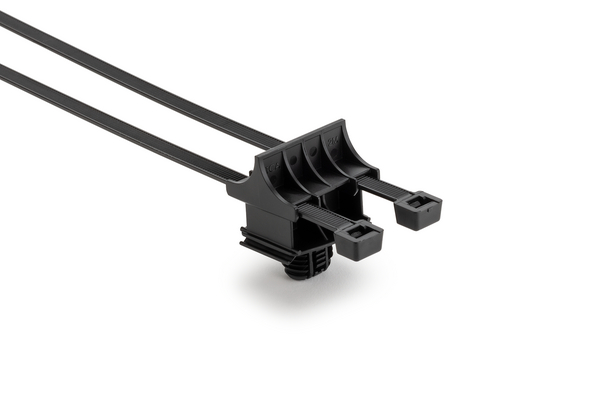

Fixing tie, inside serrated, Ø5.0-105.0mm, black, 500pcs.
Art.-No. 156-03950 | T120R2XDHVSDOS12X17-PA66HIRHSUV-BK |  Details

    Add to watchlist
    Downloads
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Pack Cont. 500pcs.
    Package Content packed in carton
    PART DESCRIPTION T120R2XDHVSDOS12X17-PA66HIRHSUV-BK
    Variant Inside Serrated
    Bundle Diameter max (metric) 105.0mm
    Bundle ∅ 5.0-105.0mm
    Bundle ∅ min. 5.0mm
    for Hole ∅ (FH) 12.0 x 17.0 mm
    for Panel Thickness min - max 0.6 - 4.7 mm
    for Panel Thickness min - max 0 - 0.2 "
    Height (H) 31.6mm
    Hole Depth 0.60mm
    Hole Depth 4.73mm
    Length (L) 203.2mm
    Min.Tensile Strength 535N
    Panel Thickness max. 0.6 - 4.73mm
    Strap Width max. (G) 0.30"
    Width (W) 32mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026696621
    Packaging 3 - Height (m) 0.210m
    Packaging 3 - Length (m) 0.606m
    Packaging 3 - Qty 500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0505m³
    Packaging 3 - Weight (kg) 9.55kg
    Packaging 3 - Width (m) 0.397m
    Packaging 4 - Qty 15000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
