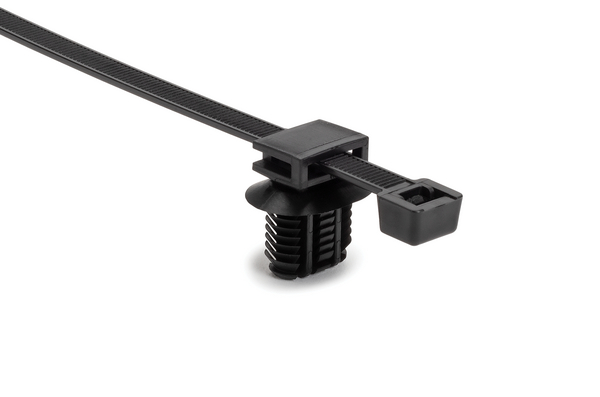

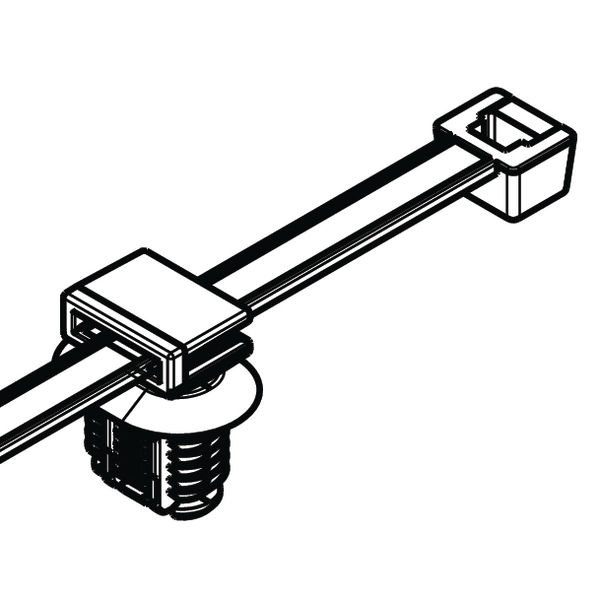

Fixing tie for hole (oval), inside serrated, Ø5.0-105.0mm, black, 2000pcs.
Art.-No. 156-03096 | T120RFT9X17XLGSET-PA66HIRHSUV-BK |  Details

Fir tree disc feature prevents rattling in high-vibration applications and protects against debris ingress.

    Add to watchlist
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T120RFT9X17XLGSET-PA66HIRHSUV-BK
    Pack Cont. 2000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T120RFT9X17XLGSET
    Variant Inside Serrated
    Bundle Diameter max (metric) 105.0mm
    Bundle ∅ 5.0-105.0mm
    Bundle ∅ min. 5.0mm
    Height (H) 25.46mm
    Height (H2) 14.95mm
    Length (L) 385.0mm
    Min.Tensile Strength 535N
    Panel Thickness max. 0.6 - 8.9mm
    Thickness (T) 1.8mm
    Width (W) 7.6mm
    for Hole ∅ (FH) 9.0 x 17.0 mm
    for Panel Thickness min - max 0.6 - 8.9 mm
    for Panel Thickness min - max 0 - 0.4 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026649832
    Packaging 1 - Qty 3000
    Packaging 3 - Height (m) 0.219m
    Packaging 3 - Length (m) 0.606m
    Packaging 3 - Qty 2000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0528m³
    Packaging 3 - Weight (kg) 7.6kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
