24/06/2026

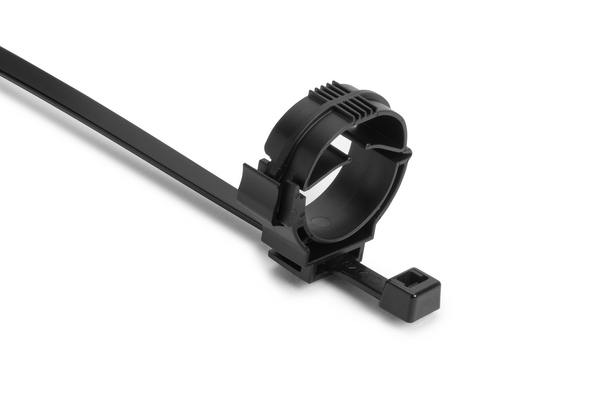

Fixing tie with pipe/tube holder, ⌀25.0-30.0mm, black, 500Carton


Art.-No. 156-03329

| T120RLOC25-30SADR90-PA66HIRHSUV-BK

 |

Copied
23579016
34060101
32304961
32304245

    Add to watchlist
    Downloads e-Learning
    Cable ⌀ max 100.0mm
    Cable ⌀ min 10.0mm
    Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Min.Tensile Strength 535N
    PART DESCRIPTION T120RLOC25-30SADR90-PA66HIRHSUV-BK
    Package Content 500Carton
    Package Content packed in carton
    Product Group 2-piece fixing ties with pipe clip
    Type T120RLOC25-30SADR90
    UV-Stabilised Yes
    Attach to ⌀ 25.0 - 30.0
    Attach to Diameter 0.98 - 1.18 "
    Bundle ⌀ 25.0-30.0mm
    Bundle ⌀ max. 30.0mm
    Bundle ⌀ min. 25.0mm
    Bundle Diameter Nom. (ND) 25.0 mm - 30.0 mm
    Depth (D) 15.0mm
    Height (H) 44.6mm
    Length (L) 387.0mm
    Length (L2) 63.6mm
    Width (W) 15.0mm
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026766553
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.34m
    Packaging 3 - Length (m) 0.57m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0738m³
    Packaging 3 - Width (m) 0.381m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
