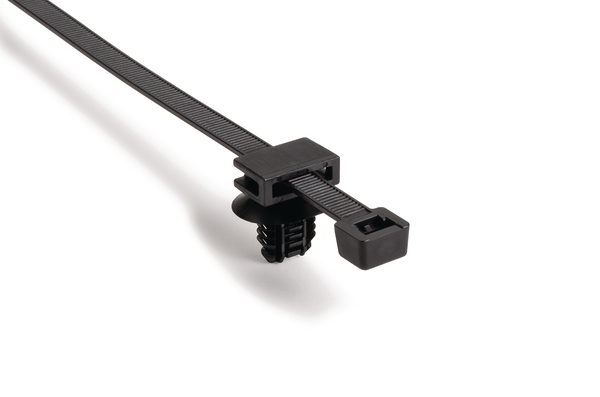

Fixing tie for hole (oval), inside serrated, ⌀5.0-105.0mm, black, 1000pcs.
Art.-No. 156-03370 | T120RSADFTOVALSET-PA66HIRHSUV-BK

Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation.
Fir tree provides low insertion effort yet demonstrates high extraction resistance.
Disc feature prevents rattling in high-vibration applications and protects against debris ingress.

Color	Black (BK)
Description	HellermannTyton’s fir tree mounts provide a secure grip in a mounting hole. The mount can slide along the cable tie to adjust orientation as needed. Fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie.
Min. Tensile Strength (imperial)	120lbs
Min. Tensile Strength (metric)	535N
PART DESCRIPTION	T120RSADFTOVALSET-PA66HIRHSUV-BK
Packaging Type	pack
Part No.	156-03370
Product family	2-Piece Tie Assemblies
Product family	Fixing ties for holes
Short Desc.	2-Piece Cable Tie with Oval Fir Tree, Unassembled Set, 15"L, 6.2 x 12.2 mm;6.5 x 12.5 mm;6.5 x 13.0 mm or 7.0 x 12.0 mm Mounting Hole, PA66HIRHSUV, Black, 1000/ctn
Type	T120RSADFTOVALSET
UV Resistant	Yes

Cable Tie Closure	plastic pawl
Disc Diameter (imperial)	0.69 x 0.93"
Disc Diameter (metric)	17.6 x 23.6mm
Fixation Method	Fir Tree for oval holes
Height (imperial)	0.92"
Height (metric)	23.4mm
Height 2 (imperial)	0.51"
Height 2 (metric)	12.85mm
Identification Plate Position	none
Length (imperial)	15.0"
Length (metric)	385.0mm
Max. Bundle Diameter (imperial)	4.13"
Max. Bundle Diameter (metric)	105.0mm
Max. Mounting Hole Diameter (imperial)	0.51"
Max. Panel Thickness (imperial)	0.26"
Max. Panel Thickness (metric)	6.75mm
Min. Bundle Diameter (imperial)	0.2"
Min. Bundle Diameter (metric)	5.0mm
Min. Mounting Hole Diameter (imperial)	0.24"
Min. Panel Thickness (imperial)	0.02"
Min. Panel Thickness (metric)	0.6mm
Mounting Hole Diameter (imperial)	0.24 x 0.48 ", 0.26 x 0.49 ", 0.26 x 0.51 ", 0.28 x 0.47 "
Mounting Hole Diameter (metric)	6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
Mounting Hole Shape	Oval
Panel Thickness (imperial)	0.02 - 0.26"
Panel Thickness (metric)	0.6 - 6.75mm
Releasable Closure	No
Thickness (imperial)	0.07"
Thickness (metric)	1.8mm
Width (imperial)	0.30"
Width (metric)	7.6mm

CE Certification	No
CSA Certified	No
Cable Tie	Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Flammability	UL 94 HB
Halogen Free	Yes
Material	PA66HIRHSUV
Material	Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Foot Part	PA66HIRHSUV
Operating Temperature	-40°F to +221°F (-40°C to +105°C)
Prop65 Warning	No
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No


Customs Number (Schedule B)	3926909988
Harmonized Tariff Schedule Code	3926.90.9989
Pkg. Qty.	1000
Pkg. Qty.	1000Pieces
