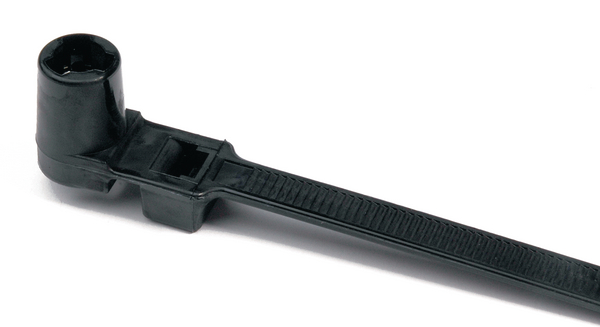

Fixing tie for stud, inside serrated, ⌀5.0-101.0mm, black, 50pcs.
Art.-No. 157-01300 | T120RSM-PA66HIRHSUV-BK

Copied
  • One-piece fixing ties
  • High specification materials
  • Superior design
  • Suitable for complex applications

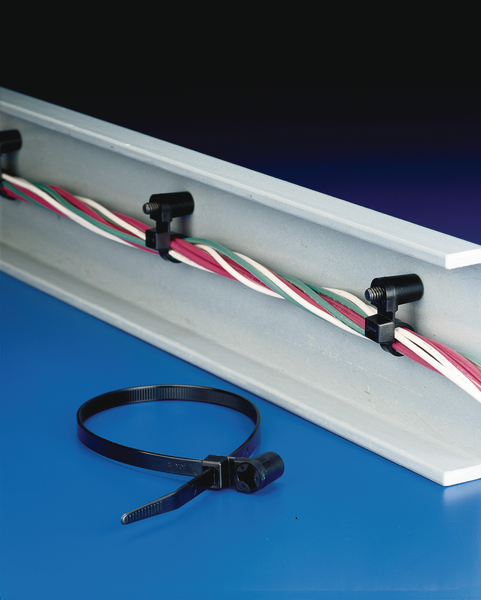

Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured (T120RSM is for 1/4" bolts).
Colour Black (BK)
Fixation Method Stud Mount
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION T120RSM-PA66HIRHSUV-BK
Pack Cont. 50pcs.
Package Content packed in pack
Product Group 1-piece fixing ties for weld studs
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T120RSM
Variant Inside Serrated
Bundle ⌀ 5.0-101.0mm
Bundle ⌀ max. 101.0mm
Bundle ⌀ min. 5.0mm
Height (H) 19.50mm

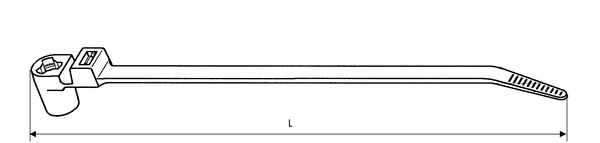

Length (L) 405.0mm
Min.Tensile Strength 535N
Pitch (P) 1/4" - 20 UNC"
Stud ⌀ 1/4"
Stud ⌀ 6.3 mm
Thickness (T) 1.8mm
UV-Stabilised Yes
Width (W) 7.6mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
Country of Origin US
GTIN-13 / EAN 4031026422114
Packaging 1 - Type bag
Packaging 3 - Height (m) 0.37465m
Packaging 3 - Length (m) 0.59055m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0646
Packaging 3 - Weight (kg) 8.9kg
Packaging 3 - Width (m) 0.2921m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
