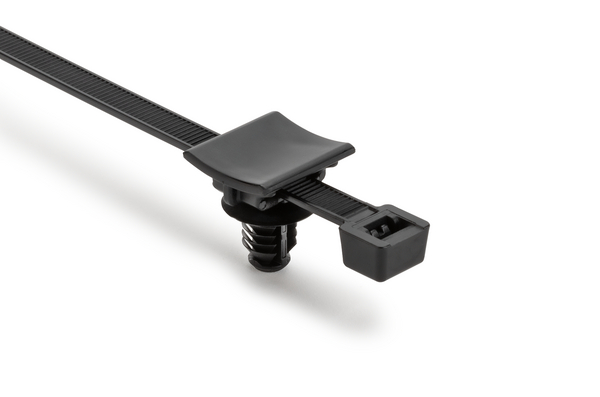

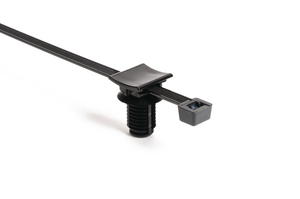

Fixing tie, inside serrated, ⌀5.0-55.0mm, black, 1000pcs.
Art.-No. 156-03181 | T120SFT8M10SET-PA66HIRHSUV-BK |

Copied
These fir tree fixings can also be used in threaded, blind holes.

    Add to watchlist
    Downloads
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Min.Tensile Strength 535N
    PART DESCRIPTION T120SFT8M10SET-PA66HIRHSUV-BK
    Package Content 1000pcs.
    Package Content packed in pack
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T120SFT8M10SET
    UV-Stabilised Yes
    Variant Inside Serrated
    Bundle ⌀ 5.0-55.0mm
    Bundle ⌀ max. 55.0mm
    Bundle ⌀ min. 5.0mm
    Height (H) 22.77mm
    Length (L) 229.0mm
    Panel Thickness max. 0.6 - 6.0mm
    Width (W) 7.6mm
    for Hole ⌀ (FH) 8.0 mm
    for Panel Thickness min - max 0.6 - 6 mm
    for Panel Thickness min - max 0 - 0.2 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026712826
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Weight (kg) 2.1kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Qty 40000
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
