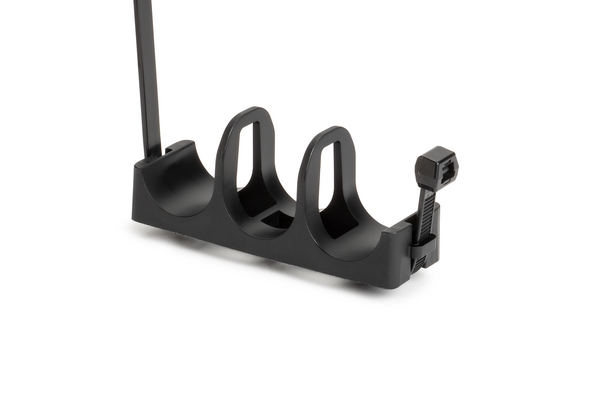

Fixing tie, ⌀25mm, black, 250pcs.
Art.-No. 156-03182 | T120TRIPLE25-PA66HIRHSUV-BK |

Copied

    Add to watchlist
    Downloads
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Colour Black (BK)
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T120TRIPLE25-PA66HIRHSUV-BK
    Pack Cont. 250pcs.
    Package Content packed in carton
    Type T120TRIPLE25
    ⌀ max. 1. loop 25mm
    ⌀ max. 2. loops 25mm
    Bundle ⌀ 25mm
    Bundle ⌀ max. 25mm
    Height (H) 37.0mm
    Length (L) 96.0mm
    Length (L2) 28.0mm
    Length (L3) 387.0mm
    Min.Tensile Strength 535N
    UV-Stabilised Yes
    Width (W) 29.0mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026712833
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Qty 250
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Weight (kg) 4.02kg
    Packaging 3 - Width (m) 0.2921m
    Packaging 4 - Qty 6000
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
