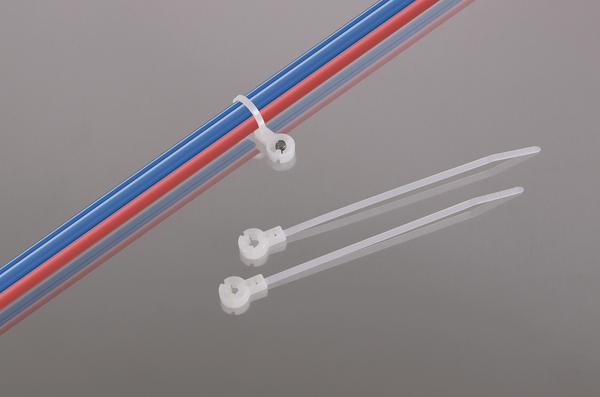

Fixing tie for stud, Ø1-22mm, natural, 100pcs.
Art.-No. 157-00540 | T18RSBU-M4-PA66-NA Details

  • One-piece fixing ties
  • High specification materials
  • Superior design
  • Suitable for complex applications
Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
Colour Natural (NA)
Fixation Method Weld Stud Fixing
Identification Plate Position none
Material Polyamide 6.6 (PA66)
Mounting Screw Type M4 Screw
PART DESCRIPTION T18RSBU-M4-PA66-NA
Pack Cont. 100pcs.
Package Content packed in bag
Product Group 1-piece fixing ties for weld studs
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T18RSBU-M4
Bundle Diameter max (metric) 22mm
Bundle ∅ 1-22mm
Bundle ∅ min. 1mm
Length (L) 110mm
Min.Tensile Strength 80N
Stud ∅ M4
Thickness (T) 1.1mm
Width (W) 2.5mm
Flammability UL 94 V2
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Country of Origin JP
GTIN-13 / EAN 4944387128765
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
