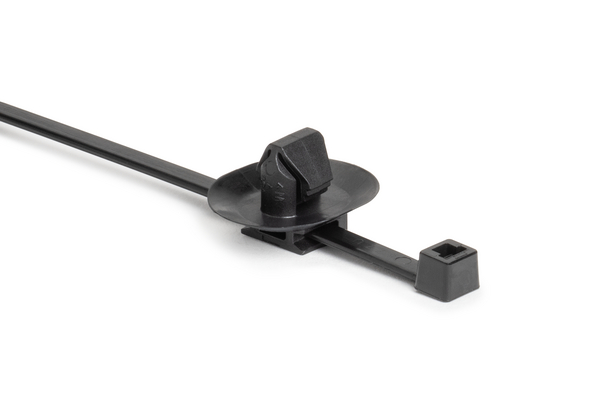

Fixing tie for hole (oval), inside serrated, ⌀3.0-110.0mm, black, 3000Carton
Art.-No. 156-03078 | T50LAHS7X12-PA666V0/PA66HS-BK

Copied
Being a two-piece assembly allows the tie head to be located in the most convenient position.
T50RFT6

    • Pre-assembled 2-piece fixing tie with arrowhead foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Arrowhead simply locks into place
    • Versions for oval holes feature anti-twist protection
    Add to watchlist
    Downloads e-Learning
    Application Primarly designed for fixing cable harnesses in the automotive industry, their simplicitiy and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Description The Arrowhead Mount Cable Tie is a pre-assembled, two-piece bundling and mounting solution exhibiting a low push-in force and strong pull-out strength. The PA666V0 arrowhead material makes the product ideal to meet rail requirements.
    Fixation Method Arrowhead for oval holes
    Foot Part Polyamide 6.6/6, V0 (PA666V0)
    Identification Plate Position none
    Material Polyamide 6.6/6, V0 (PA666V0), Polyamide 6.6, heat stabilised (PA66HS)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50LAHS7X12-PA666V0/PA66HS-BK
    Package Content 3000Carton
    Package Content packed in carton
    Product Family for oval holes
    Product Group 2-piece fixing ties with arrowhead, with disc
    Tie Closure plastic pawl
    Type T50LAHS7X12
    UV-Stabilised No
    Bundle ⌀ 6.0-110.0mm
    Bundle ⌀ max. 110.0mm
    Bundle ⌀ min. 6.0mm
    Disc ⌀ 27.2mm
    Fixing Hole Shape Oval
    Height (H) 16.01mm
    Length (L) 390.0mm
    Panel Thickness 1.0 - 2.0mm
    Width (W) 27.2mm
    for Hole ⌀ (FH) 7.0 x 12.0 mm
    for Panel Thickness min - max 1 - 2 mm
    for Panel Thickness min - max 0.1 - 0 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free Yes
    Operating Temperature -40 °C to +120 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026763910
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Width (m) 0.2921m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
    Art.-No.: 156-03078 Contact
