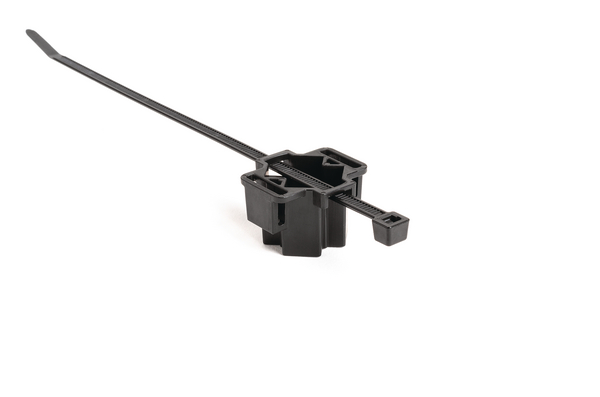

Fixing tie with pipe/tube holder, ⌀10.0-45.0mm, black, 1000pcs.
Art.-No. 156-02995 | T50R0SBS14SET-PA66HIRHSUV-BK

Versatile design allows cable routing above, perpendicular or parallel to stud.
Can mount up to three bundles simultaneously, making efficient use of a single mounting point.
Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure.

Color	Black (BK)
Description	Unique, two-piece cable tie and stud mount combination allows routing to be above, parallel or perpendicular to stud. This also enables up to three separate bundles to be fastened to the same stud. With its low insertion force and high extraction performance, HellermannTyton’s mounting tie offers the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications.
Key product features	rotatable, for multiple routing, removable
Min. Tensile Strength (imperial)	50lbs
Min. Tensile Strength (metric)	223N
PART DESCRIPTION	T50R0SBS14SET-PA66HIRHSUV-BK
Packaging Type	carton
Part No.	156-02995
Product family	2-Piece Tie Assemblies
Product family	Products to use on studs
Short Desc.	2-Piece M14 Stud Mount Tie, 8.0" Tie, 50lb Tensile Strength, PA66HIRHSUV, BK, 1000/pkg
Type	T50R0SBS14SET
UV Resistant	Yes

Cable Tie Closure	plastic pawl
Cable Ties	T50R, T120R0HSH4
Fixation Method	Stud Mount
Height (imperial)	0.82"
Height (metric)	21.0mm
Height 2 (imperial)	0.51"
Height 2 (metric)	13.1mm
Identification Plate Position	none
Length (imperial)	8.0"
Length (metric)	203.2mm
Max. Bundle Diameter (imperial)	1.77"
Max. Bundle Diameter (metric)	45.0mm
Min. Bundle Diameter (imperial)	0.39"
Min. Bundle Diameter (metric)	10.0mm
Mounting Hole Diameter (metric)	M14
Mounting Hole Shape	Round
Releasable Closure	No
Stud Diameter (metric)	14.0 mm
Width (imperial)	1.33"
Width (metric)	34.0mm
Width 2 (imperial)	1.26"
Width 2 (metric)	32.1mm

CE Certification	No
CSA Certified	No
Cable Tie	Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Flammability	UL 94 HB
Halogen Free	Yes
Material	PA66HIRHSUV
Material	Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Foot Part	PA66HIRHSUV
Operating Temperature	-40°F to +221°F (-40°C to +105°C)
Operating Temperature, 1000h	+320°F (+160°C)
Operating Temperature, 5000h	+257°F (+125°C)
Operating Temperature, 500h	+329°F (+165°C)
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No


Customs Number (Schedule B)	3926909988
Harmonized Tariff Schedule Code	3926.90.9989
Packaging 1 - Weight (kg)	0.0045kg
Pkg. Qty.	1000
Pkg. Qty.	1000Pieces
