10/08/2025

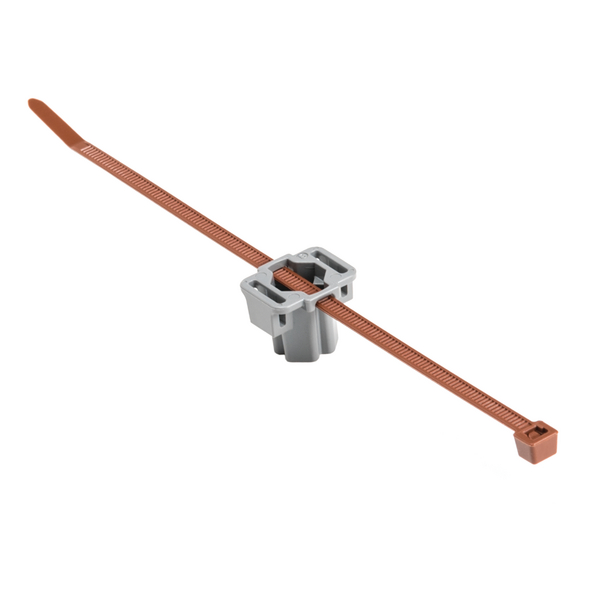

Fixing tie for stud, ⌀4.0-50.0mm, brown/grey, 3000pcs.
Art.-No. 156-01668 | T50R1SBS5-6U-SET-PA46-BN/GY |

Copied

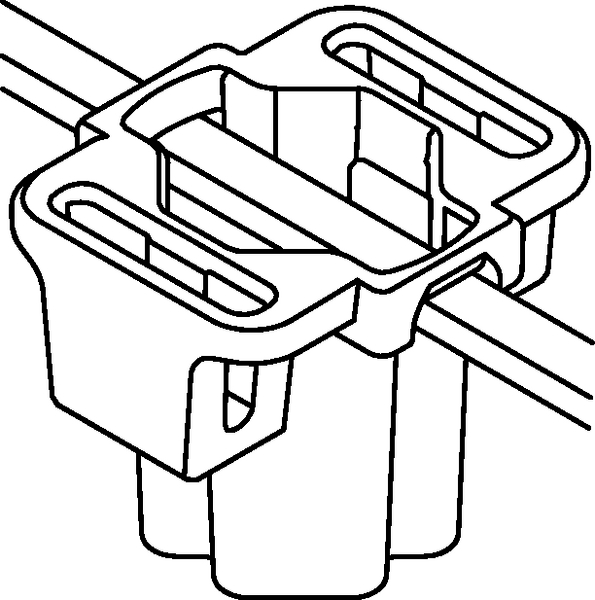

Versatile two-piece design allows cable routing above, perpendicular or parallel to stud.
1-Piece Fixing Ties for Weld Studs, cloverleaf design. From left to right: 1. Standoff, 2. standard, 3. low profile head with standoff, 4. low profile head design.

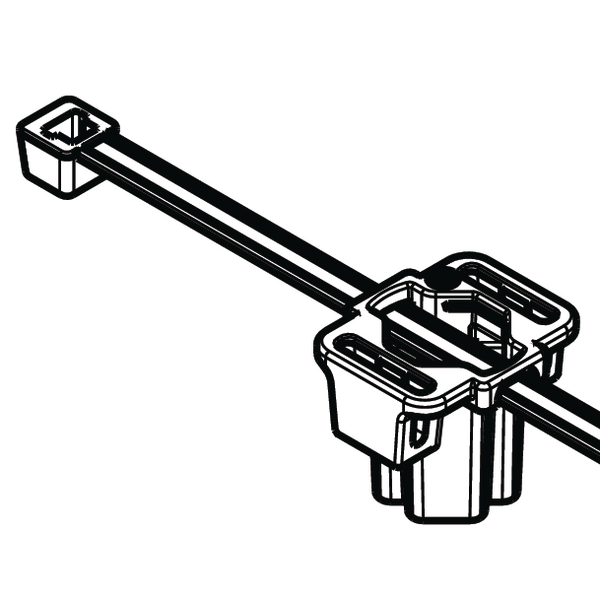

Versatile two-piece design allows cable routing above, perpendicular or parallel to stud.

    Add to watchlist
    Downloads
    Cable Tie Polyamide 4.6 (PA46)
    Colour Brown (BN), Grey (GY)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    Min.Tensile Strength 223N
    PART DESCRIPTION T50R1SBS5-6U-SET-PA46-BN/GY
    Package Content 3000pcs.
    Package Content packed in pack
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50R1SBS5-6U-SET
    UV-Stabilised No
    Weight/Unit 0.004155kg
    Bundle ⌀ 4.0-50.0mm
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 4.0mm
    Height (H) 18.75mm
    Length (L) 203.2mm
    Stud ⌀ 5.0 mm, 6.0 mm
    Width (W) 23.25mm
    Width (W2) 20.05mm
    for Hole ⌀ (FH) M5 x 0.8, M6 x 1, T5
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +130 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026574134
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 13.235kg
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Height (m) 1.239m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 45000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.189m³
    Packaging 4 - Weight (kg) 219.525kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
    Art.-No.: 156-01668 Contact
