Fixing tie to close hole, outside serrated, ⌀2.5-50.0mm, black, 500pcs.
Art.-No. 156-01726 | T50RBHMB-PA66HS-BK

Delivers high pull-out force for reliable performance, yet it’s easy to install.
Reusable fastener can be extracted from threaded or nonthreaded holes using a 5/16" hex driver.
Heat-stabilized material provides excellent resistance to high temperatures.

Color	Black (BK)
Description	HellermannTyton Blind Hole Mount Cable Ties for threaded and nonthreaded holes offer an easy-to-use method for bundling and affixing cables. The two-piece design includes a heat-stabilized cable tie and formula-matched, 1/4" mount that features a low push-in force and aggressively resists pull out. Performs equally well in threaded or nonthreaded blind holes. Mount can slide along cable tie to adjust orientation if needed. Fastener can be removed from hole using a hex driver, ensuring reuse if desired.
Min. Tensile Strength (imperial)	50lbs
Min. Tensile Strength (metric)	225N
PART DESCRIPTION	T50RBHMB-PA66HS-BK
Packaging Type	pack
Part No.	156-01726
Product family	2-Piece Tie Assemblies
Product family	Fasteners for cast components
Short Desc.	Blind Hole Mount Outside Serrated Cable Tie for 1/4" Thread/Non-Thread Hole, 8", 50lb, PA66HS, Black, 500/bg
Type	T50RBHMB
UV Resistant	No

Diameter (imperial)	0.25"
Diameter (metric)	6.35mm
Disc Diameter (imperial)	0.43"
Disc Diameter (metric)	10.9mm
Fixation Method	Blind Plug
Height (imperial)	0.736"
Height (metric)	18.7mm
Height 2 (imperial)	0.488"
Height 2 (metric)	12.4mm
Identification Plate Position	none

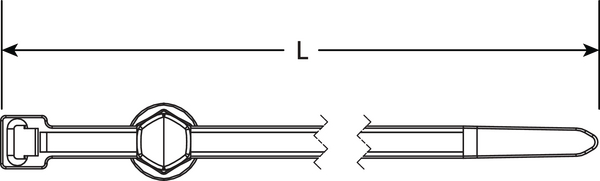

Length (imperial)	8.0"
Length (metric)	203.2mm
Max. Bundle Diameter (imperial)	1.97"
Max. Bundle Diameter (metric)	50.0mm
Max. Mounting Hole Diameter (imperial)	0.25"
Min. Bundle Diameter (imperial)	0.1"
Min. Bundle Diameter (metric)	2.5mm
Min. Hole Depth (imperial)	0.5"
Min. Hole Depth (metric)	12.7mm
Min. Mounting Hole Diameter (imperial)	0.25"
Mounting Hole Diameter (imperial)	0.246 - 0.253 "
Mounting Hole Diameter (metric)	6.25 - 6.45 mm
Mounting Hole Shape	Round
Width (imperial)	0.31"
Width (metric)	7.8mm

CE Certification	No
CSA Certified	No
Cable Tie	Polyamide 6.6 heat stabilized (PA66HS)
Flammability	UL 94 V-2
Halogen Free	No
Material	PA66HS
Material	Polyamide 6.6 heat stabilized (PA66HS)
Material Foot Part	PA66HS
Operating Temperature	-40°F to +257°F (-40°C to +125°C)
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No


Customs Number (Schedule B)	3926909988
Harmonized Tariff Schedule Code	3926.90.9989
Packaging 1 - Weight (kg)	1.056kg
Pkg. Qty.	500
Pkg. Qty.	500Pieces
