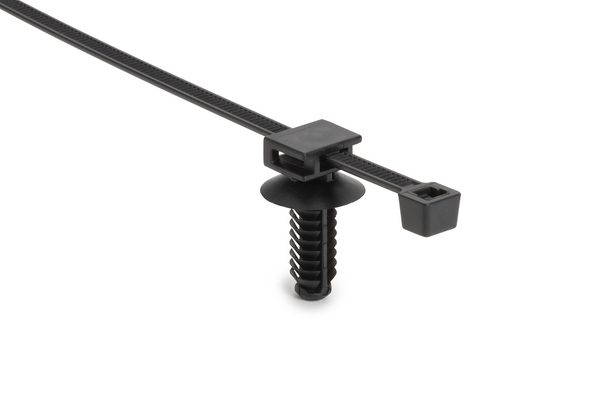

Fixing tie, inside serrated, ⌀2.0-50.0mm, black, 2000pcs.


Art.-No. 156-03973

| T50RFT6.5SDLGSET-PA66HIRHS-BK

 |

Copied
7209397
6942062

    Add to watchlist
    Downloads e-Learning
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50RFT6.5SDLGSET-PA66HIRHS-BK
    Package Content 2000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RFT6.5SDLGSET
    UV-Stabilised Yes
    Variant Inside Serrated
    Bundle ⌀ 2.0-50.0mm
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 2.0mm
    Height (H) 28.07mm
    Hole Depth 0.6mm
    Hole Depth 12.5mm
    Length (L) 202.0mm
    Panel Thickness 0.6 - 12.5mm
    Width (W) 7.80mm
    for Hole ⌀ (FH) 6.1 - 6.7 mm
    for Panel Thickness min - max 0.6 - 12.5 mm
    for Panel Thickness min - max 0 - 0.5 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +110 °C
    Operating Temperature, 1000h +160 °C
    Operating Temperature, 5000h +125 °C
    Operating Temperature, 500h +165 °C
    ROHS compliant Yes
    Specifications
    Country of Origin US
    GTIN-13 / EAN 4031026703022
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20479m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Qty 2000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0332m³
    Packaging 3 - Weight (kg) 4.65kg
    Packaging 3 - Width (m) 0.314325m
    Packaging 4 - Qty 80000
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
