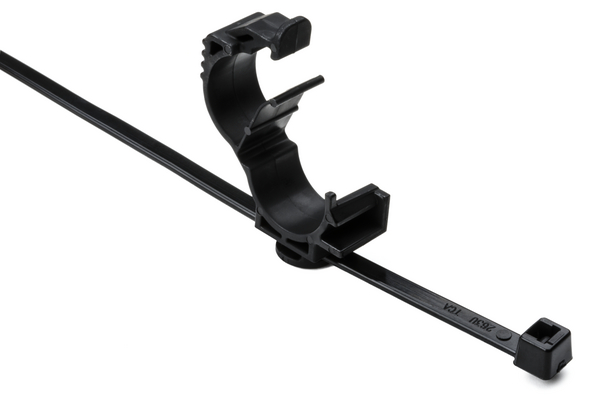

Fixing tie with pipe/tube holder, ⌀10.0-14.0mm, black, 500pcs.
Art.-No. 156-01093
| T50RLOC10-14-PA66HS/PA66HIRHSUV-BK
Copied
- The 360 degree enclosure ensures the entire bundle is secure when being routed by this clip.
- Locking tab on this clip is small enough that it will not interfere with any other portion of the wire routing, but is significant enough to allow for manual disengagement if service is needed.
- The cable tie portion of this two-piece design allows for two wire bundles to be routed with the same piece.
More products in this product group:
| Application | HellermannTyton's two-piece cable tie assembly offers dual bundle routing. The omega clip portion creates a full and secure lock completely around one bundle, while the cable tie creates a secure solution for a second bundle. |
| Brand Family | LOC-Series |
| Color | Black (BK) |
| Description | HellermannTyton's two-piece cable tie assembly offers dual bundle routing. The omega clip portion creates a full and secure lock completely around one bundle, while the cable tie creates a secure solution for a second bundle. |
| Key product features | lockable, rotatable |
| Min. Tensile Strength (imperial) | 50lbs |
| Min. Tensile Strength (metric) | 220N |
| PART DESCRIPTION | T50RLOC10-14-PA66HS/PA66HIRHSUV-BK |

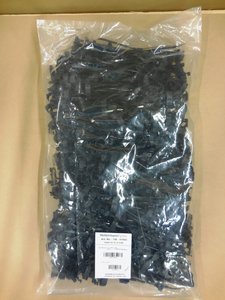

| Packaging Type | pack |
| Part No. | 156-01093 |
| Product family | 2-Piece Tie Assemblies |
| Product family | Products for wires and hoses, Products for parallel/multiple routing |
| Short Desc. | LOC Locking Clamp, 10-14mm, Assembled with T50R, PA66HIRHSUV, Black, 2500/ctn |
| Type | T50RLOC10-14 |
| UV Resistant | Yes |
| Depth (imperial) | 0.42" |
| Depth (metric) | 10.75mm |
| Fixation Method | Omega Clip |
| Height (imperial) | 1.72" |
| Height (metric) | 43.75mm |
| Identification Plate Position | none |
| Length (imperial) | 1.72" |
| Length (metric) | 43.73mm |
| Length 2 (imperial) | 2.5" |
| Length 2 (metric) | 63.6mm |
| Max. Bundle Diameter (imperial) | 0.55" |
| Max. Bundle Diameter (metric) | 14.0mm |
| Max. Cable Diameter (imperial) | 1.97" |
| Max. Cable Diameter (metric) | 50.0mm |
| Miin. Cable Diameter (imperial) | 0.20" |
| Min. Bundle Diameter (imperial) | 0.39" |
| Min. Bundle Diameter (metric) | 10.0mm |
| Min. Cable Diameter (metric) | 5.0mm |
| Nominal Bundle Diameter (imperial) | 0.39 - 0.55 " |
| Nominal Bundle Diameter (metric) | 10.0 mm - 14.0 mm |
| Width (imperial) | 0.47" |
| Width (metric) | 12.0mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Halogen Free | Yes |
| Material | PA66HS, PA66HIRHSUV |
| Material | Polyamide 6.6 heat stabilized (PA66HS), Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
