Fixing tie with pipe/tube holder, ⌀10.0-14.0mm, black, 500pcs.
Art.-No. 156-01179 | T50RLOC10-14-PA66HS/PA66HIRHS-BK

Copied
The 360 degree enclosure ensures the entire bundle is secure when being routed by this clip.
The 360 degree enclosure ensures the entire bundle is secure when being routed by this clip.

    • The 360 degree enclosure ensures the entire bundle is secure when being routed by this clip.
    • Locking tab on this clip is small enough that it will not interfere with any other portion of the wire routing, but is significant enough to allow for manual disengagement if service is needed.
    • The cable tie portion of this two-piece design allows for two wire bundles to be routed with the same piece.
    Add to watchlist
    Downloads e-Learning

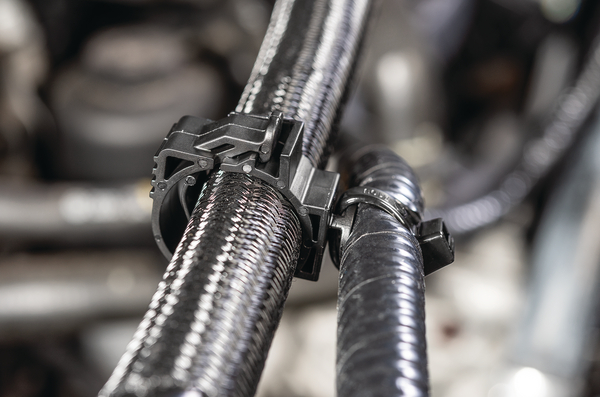

    Application HellermannTyton's two-piece cable tie assembly offers dual bundle routing. The omega clip portion creates a full and secure lock completely around one bundle, while the cable tie creates a secure solution for a second bundle.
    Color Black (BK)
    Description HellermannTyton's two-piece cable tie assembly offers dual bundle routing. The omega clip portion creates a full and secure lock completely around one bundle, while the cable tie creates a secure solution for a second bundle.
    Key product features lockable, rotatable
    PART DESCRIPTION T50RLOC10-14-PA66HS/PA66HIRHS-BK
    Packaging Type bag
    Part No. 156-01179
    Product family 2-Piece Tie Assemblies
    Product family Products for wires and hoses, Products for parallel/multiple routing
    Type T50RLOC10-14
    Fixation Method Omega Clip
    Identification Plate Position none
    Max. Bundle Diameter (imperial) 0.55"
    Max. Bundle Diameter (metric) 14.0mm
    Max. Cable Diameter (imperial) 1.97"
    Max. Cable Diameter (metric) 50.0mm
    Miin. Cable Diameter (imperial) 0.20"
    Min. Bundle Diameter (imperial) 0.39"
    Min. Bundle Diameter (metric) 10.0mm
    Min. Cable Diameter (metric) 5.0mm
    Nominal Bundle Diameter (imperial) 0.39 " - 0.55 "
    Nominal Bundle Diameter (metric) 10.0 mm - 14.0 mm
    Material PA66HS, PA66HIRHS
    Material Polyamide 6.6 heat stabilized (PA66HS), Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
    ROHS compliant Yes
    Pkg. Qty. 500Pieces
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
