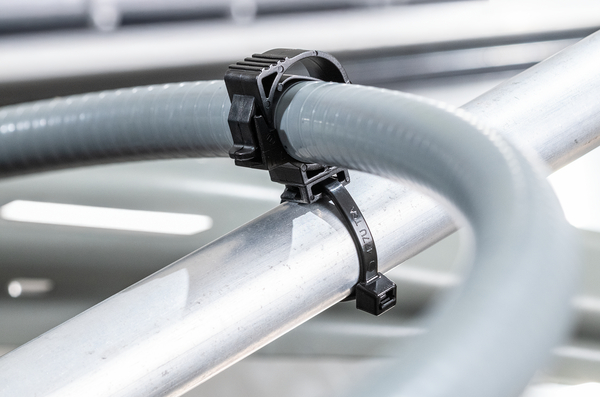

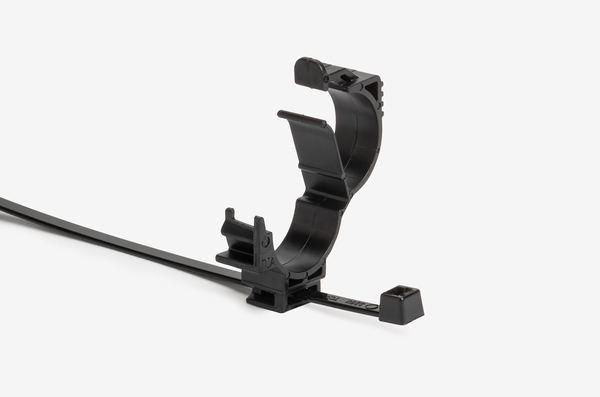

Fixing tie with pipe/tube holder, ⌀15.0-19.0mm, black, 2000Carton
Art.-No. 156-03510
| T50RLOC15-19AR-A-PA66HIRHSUV-BK
|
Copied
| Colour | Black (BK) |
| Fixation Method | Omega Clip |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Min.Tensile Strength | 225N |
| PART DESCRIPTION | T50RLOC15-19AR-A-PA66HIRHSUV-BK |
| Package Content | 2000Carton |
| Package Content packed in | carton |
| Product Group | 2-piece fixing ties with pipe clip |
| Type | T50RLOC15-19AR-A |
| UV-Stabilised | Yes |
| Bundle ⌀ | 15.0-19.0mm |
| Bundle ⌀ max. | 19.0mm |
| Bundle ⌀ min. | 15.0mm |
| Bundle Diameter Nom. (ND) | 15.0 - 19.0 mm |
| Cable Tie Head Length (metric) | 7.3mm |
| Cable Tie Head Width (metric) | 7.6mm |
| Depth (D) | 12.0mm |

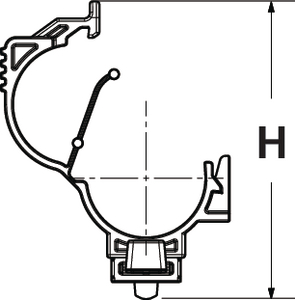

| Height (H) | 51.24mm |
| Height (H2) | 5.9mm |

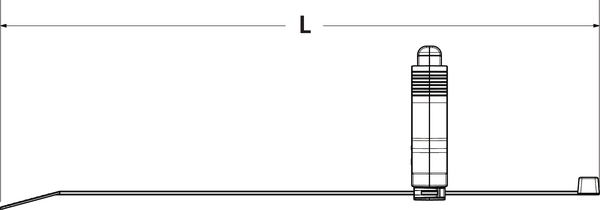

| Length (L) | 202.0mm |
| Length (L2) | 52.0mm |
| Strap Width max. (G) | 0.30" |
| Thickness (T) | 1.2mm |
| Width (W) | 4.6mm |
| Width (W2) | 10.75mm |
| Width (W3) | 12.0mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Halogen-free | Yes |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
