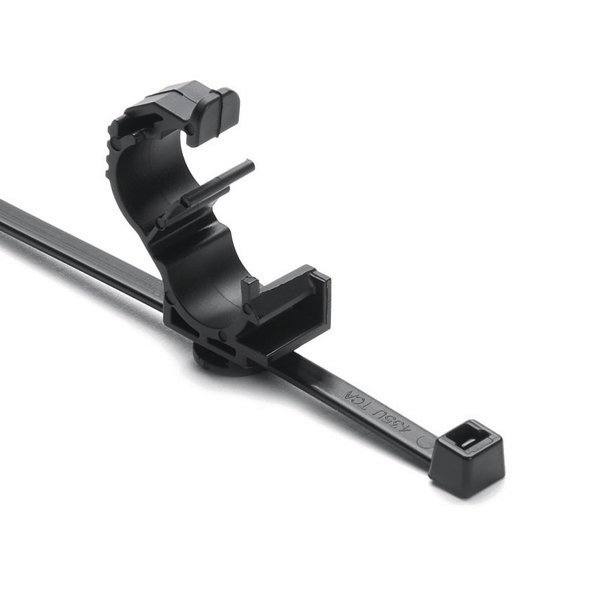

Fixing tie with pipe/tube holder, inside serrated, ⌀5.0-9.0mm, black, 1000pcs.
Art.-No. 156-01289
| T50RLOC5-9-SET-PA66HS/PA66HIRHSUV-BK
Copied
- The 360 degree enclosure ensures the entire bundle is secure when being routed by this clip.
- Locking tab on this clip is small enough that it will not interfere with any other portion of the wire routing, but is significant enough to allow for manual disengagement if service is needed.
- The cable tie portion of this two-piece design allows for two wire bundles to be routed with the same piece.
More products in this product group:

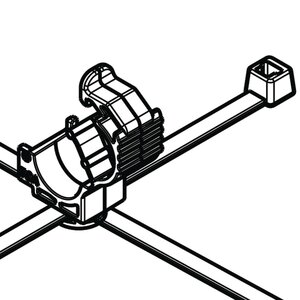

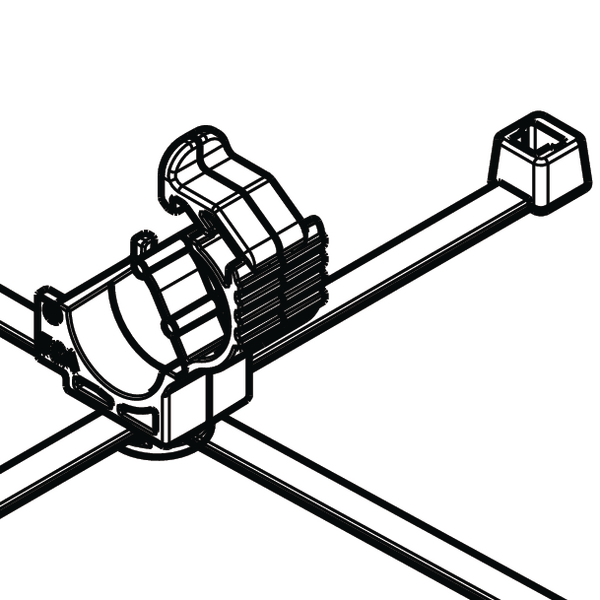

| Application | The 2-Piece LOC with Saddle to T50R Tie has a two-piece design that keeps two routings secured together while providing a semi-fixed orientation for each bundle. The saddle design allows 90-degree rotation of the bundles. Tie provides additional security against axial slip by clamping around solid tube, pipe or harness. |
| Brand Family | LOC-Series |
| Color | Black (BK) |
| Description | The Locking Clip creates a full and secure lock completely around a wire bundle ranging from 10-14mm. The fixating fir tree on this clip allows for the clip to be secured into a panel by a 6mm round hole. |
| Key product features | for multiple routing, removable |
| Min. Tensile Strength (imperial) | 50lbs |
| Min. Tensile Strength (metric) | 225N |
| PART DESCRIPTION | T50RLOC5-9-SET-PA66HS/PA66HIRHSUV-BK |
| Packaging Type | pack |
| Part No. | 156-01289 |
| Product family | LOC Cable Ties |
| Product family | Products for wires and hoses |
| Short Desc. | LOC Locking Clamp, 5 - 9 mm, Unassembled to T50R Tie, PA66HIRHSUV, Black, 1000/ctn |
| Type | T50RLOC5-9-SET |
| UV Resistant | Yes |
| Cable Tie Closure | plastic pawl |
| Depth (imperial) | 0.47" |
| Depth (metric) | 12.0mm |
| Fixation Method | Omega Clip |
| Height (imperial) | 0.93" |
| Height (metric) | 23.6mm |
| Identification Plate Position | none |
| Length (imperial) | 0.93" |
| Length (metric) | 23.7mm |
| Length 2 (imperial) | 0.73" |
| Length 2 (metric) | 18.6mm |
| Max. Bundle Diameter (imperial) | 0.35" |
| Max. Bundle Diameter (metric) | 9.0mm |
| Max. Cable Diameter (imperial) | 1.97" |
| Max. Cable Diameter (metric) | 50.0mm |
| Miin. Cable Diameter (imperial) | 0.20" |
| Min. Bundle Diameter (imperial) | 0.2" |
| Min. Bundle Diameter (metric) | 5.0mm |
| Min. Cable Diameter (metric) | 5.0mm |
| Nominal Bundle Diameter (imperial) | 0.20 " - 0.35 " |
| Nominal Bundle Diameter (metric) | 5.0 mm - 9.0 mm |
| Releasable Closure | No |
| Width (imperial) | 0.47" |
| Width (metric) | 12.0mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HS, PA66HIRHSUV |
| Material | Polyamide 6.6 heat stabilized (PA66HS), Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
