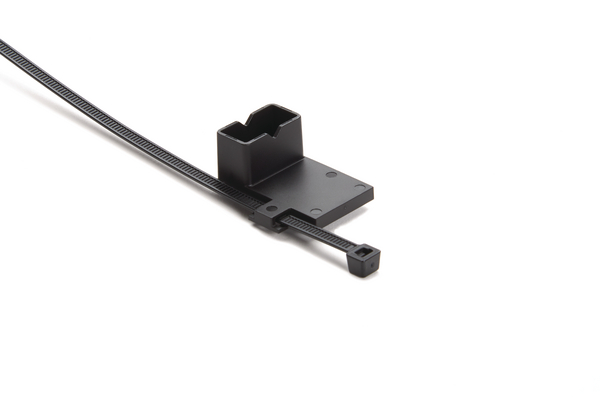

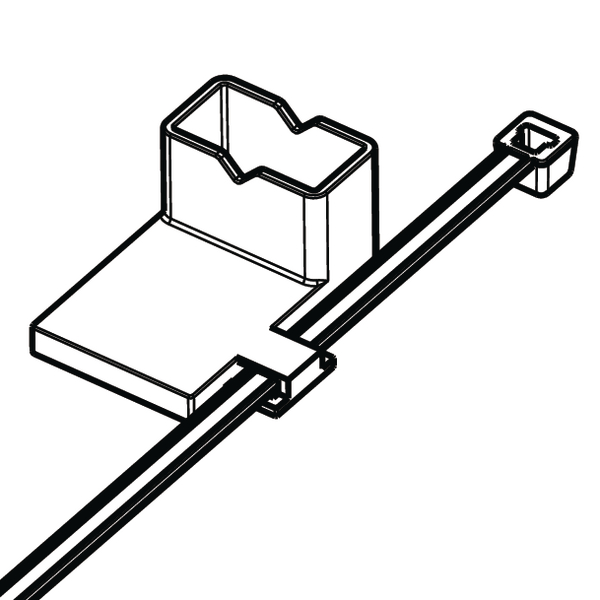

Fixing tie for stud, inside serrated, black, 2000pcs.
Art.-No. 156-01652 | T50RM5-6SLOTSMSET-PA66HS/PA66HIRHS-BK

Copied
Oval style stud mount accomodates 5 mm and 6 mm bolts, offering tolerance compensation on bolt location.

    • Oval style stud mount accomodates 5 mm and 6 mm bolts, offering tolerance compensation on bolt location.
    • Stud mount design requires low installation force while providing exceptional stud retention to go on easy and keep bundles secure.
    Add to watchlist
    Downloads
    Color Black (BK)
    Description These two-piece fasteners are pre-assembled and offer a simple and versatile method of bundling and mounting cables. Sold as an unassembled set, this oval fir tree and tie combination allows the user to install the tie in two different directions, securing the bundle perpendicular or inline to the oval mounting hole.
    Min. Tensile Strength (imperial) 50lbs
    Min. Tensile Strength (metric) 225N
    PART DESCRIPTION T50RM5-6SLOTSMSET-PA66HS/PA66HIRHS-BK
    Packaging Type pack
    Part No. 156-01652
    Product family 2-Piece Tie Assemblies
    Product family Products to use on studs
    Short Desc. 2-Piece Cable Tie with Stud Mount, 8.0"L, 5mm/6mm Stud Mount, 50lb Tensile Strength, PA66HS/PA66HIRHSUV, Black, 2000/ctn
    Type T50RM5-6SLOTSMSET
    UV Resistant No
    Cable Tie Closure plastic pawl
    Cable Tie Head Width (imperial) 0.30
    Fixation Method Weld Stud Fixing
    Height (imperial) 0.69"
    Height (metric) 17.65mm
    Identification Plate Position none
    Length (imperial) 8"
    Length (metric) 203.2mm
    Mounting Hole Shape Oval
    Releasable Closure No
    Stud Diameter (metric) M5, M6, T5
    Thickness (imperial) 0.05"
    Thickness (metric) 1.2mm
    Width (imperial) 0.18"
    Width (metric) 4.6mm
    Width 2 (imperial) 1.24"
    Width 2 (metric) 31.5mm
    CE Certification No
    CSA Certified No
    Material PA66HS, PA66HIRHS
    Material Polyamide 6.6 heat stabilized (PA66HS), Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
    Material Foot Part PA66HIRHS
    Operating Temperature -40°F to +221°F (-40°C to +105°C)
    Operating Temperature, 1000h +320°F (+160°C)
    Operating Temperature, 5000h +257°F (+125°C)
    Operating Temperature, 500h +329°F (+165°C)
    Prop65 Warning No
    REACH Conformity Yes
    ROHS compliant Yes
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Customs Number (Schedule B) 3926909988
    Harmonized Tariff Schedule Code 3926.90.9989
    Pkg. Qty. 2000
    Pkg. Qty. 2000Pieces
