01/08/2025

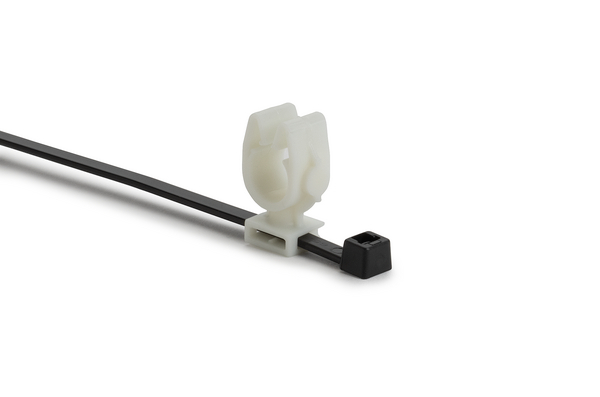

Fixing tie with pipe/tube holder, ⌀9.5-11.5mm, black/natural, 2000pcs.
Art.-No. 156-03613 | T50RMOC10SAD-PA66HIRHSUV/PA66HIRHS-BK/NA |

Copied

    Add to watchlist
    Downloads
    Cable ⌀ max 50.0mm
    Cable ⌀ min 1.5mm
    Colour Black (BK), Natural (NA)
    Fixation Method Omega Clip
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50RMOC10SAD-PA66HIRHSUV/PA66HIRHS-BK/NA
    Package Content 2000pcs.
    Package Content packed in carton
    Product Group 2-piece fixing ties with pipe clip
    Type T50RMOC10SAD
    UV-Stabilised Yes
    Bundle ⌀ 9.5-11.5mm
    Bundle ⌀ max. 11.5mm
    Bundle ⌀ min. 9.5mm
    Bundle Diameter Nom. (ND) 10.0 mm
    Depth (D) 10.0mm
    Height (H) 31.9mm
    Length (L) 202.0mm
    Length (L2) 13.2mm
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    Operating Temperature Foot Part (Metric) -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026756820
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Width (m) 0.2921m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
