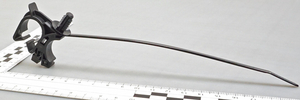

Fixing tie with pipe/tube holder, inside serrated, ⌀16.0-20.0mm, black, 500pcs.
Art.-No. 156-03326 | T50RMOC19FT6.5-PA66HIRHS-BK

More products in this product group:

This product is part of:

Cable ⌀ max	21.8mm
Cable Tie	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Colour	Black (BK)
Fixation Method	Omega Clip
Foot Part	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position	none
Key product features	ergonomic design
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Min.Tensile Strength	225N
PART DESCRIPTION	T50RMOC19FT6.5-PA66HIRHS-BK

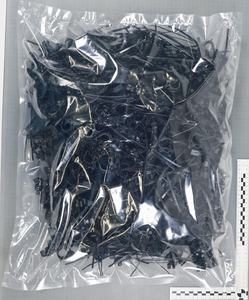

Package Content	500pcs.
Package Content packed in	bag
Product Group	2-piece fixing ties with pipe clip

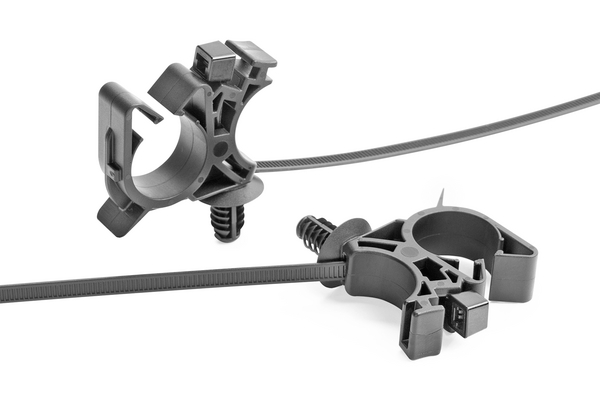

Short Description	2-piece fixing tie, for parallel routing, with fir tree for round holes 6.5mm.
Tie Closure	plastic pawl
Type	T50RMOC19FT6.5
Weight/Unit	0.006329kg

⌀ max. 2. loops	21.8mm
Attach to ⌀	17.0 - 20.0, 19.0 - 21.8
Bundle ⌀	16.0-20.0mm
Bundle ⌀ max.	20.0mm
Bundle ⌀ min.	16.0mm
Disc ⌀	16.7mm
Height (H)	36.1mm
Height (H2)	13.3mm
Length (L)	202.0mm
Length (L2)	50.9mm
Thickness (T)	1.2mm
Width (W)	4.6mm
Width (W2)	12.0mm
for Hole ⌀ (FH)	6.1 - 7.0 mm, 6.35 mm (hexagonal), 6.1 - 6.6 mm (hexagonal), M8 x 1.25 Threaded
for Panel Thickness min - max	0.6 - 4.7 mm
