Fixing tie for hole (oval), inside serrated, ⌀1.6-45.0mm, black, 1000pcs.
Art.-No. 156-02779 | T50ROSATS62X122-2DOP-SET-PA66HS/PA66HIRHS-BK |

Copied
These fir tree fixings can also be used in threaded, blind holes.

    • Two-part system for oval hole applications
    • Fast and reliable installation with ATS tool
    • Ideal for automotive cable management
    • Supports bundle diameters up to ⌀11 mm
    Add to watchlist
    Downloads

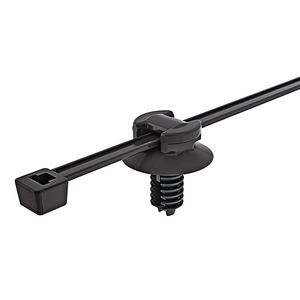

    Application This is a two-part fastening tie for oval holes, consisting of a T50ROS cable tie and an ATS62x122-2DOP foot part. It is compatible with the HellermannTyton Auto Tool System (ATS) and is widely used in the automotive industry for secure and efficient cable bundling.
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Fir Tree
    Identification Plate Position none
    Key product features ergonomic design
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50ROSATS62X122-2DOP-SET-PA66HS/PA66HIRHS-BK

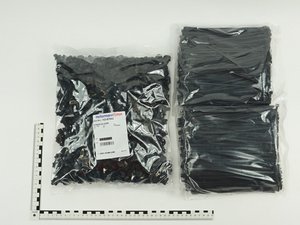

    Package Content 1000pcs.
    Package Content packed in bag
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50ROSATS62X122-2DOP-SET
    Variant Inside Serrated
    Weight/Unit 0.002195kg
    Bundle ⌀ 1.6-45.0mm
    Bundle ⌀ max. 45.0mm
    Bundle ⌀ min. 1.6mm
    Fixing Hole Shape Oval
    Height (H) 1.3mm
    Length (L) 200.0mm
    Panel Thickness max. 0.6 - 6.0mm
    Thickness (T) 1.3mm
    Width (W) 4.6mm
    for Hole ⌀ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 0.6 - 6 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Reusable (Yes/No) No
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 4031026630632
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 7.185kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 72000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 193.44kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
