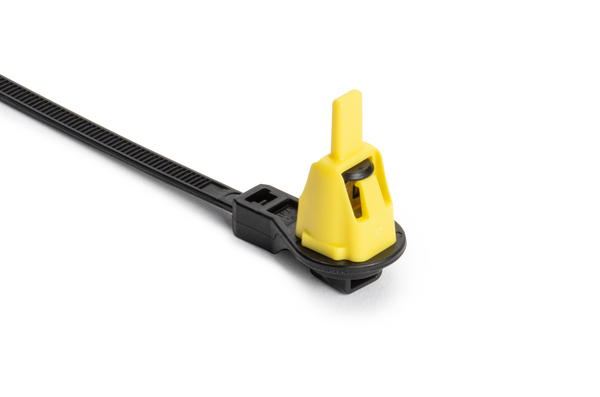

Fixing tie to close hole, inside serrated, ⌀2.0-50.0mm, black/yellow, 3000Carton
Art.-No. 156-03684 | T50ROSBHM8SO18TC-PA66HIRHSUV/POM/PP-BK/YE

Copied
  • Delivers high pull-out strength for reliable performance, yet it’s easy to install.
  • Reusable fastener can be removed from threaded or nonthreaded holes using a 5/16" hex driver.
  • Heat-stabilized material provides excellent resistance to high temperatures.
Colour Black (BK), Yellow (YE)
Description HellermannTyton Blind Hole Mount Cable Ties for threaded and nonthreaded holes offer an easy-to-use method for bundling and affixing cables. The two-piece design includes a heat-stabilized cable tie and formula-matched, 1/4" mount that features a low push-in force and aggressively resists pull out. Performs equally well in threaded or nonthreaded blind holes. Mount can slide along cable tie to adjust orientation if needed. Fastener can be removed from hole using a hex driver, ensuring reuse if desired.
Fixation Method Blind Plug
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Polyacetal (POM), Polypropylene (PP)
Min.Tensile Strength 225N
PART DESCRIPTION T50ROSBHM8SO18TC-PA66HIRHSUV/POM/PP-BK/YE
Package Content 3000Carton
Package Content packed in carton
Product Group Blind Hole Mount Cable Tie
Type T50ROSBHM8SO18TC
Weight/Unit 0.003779kg
⌀ D 0.3"
Bundle ⌀ 2.0-50.0mm
Bundle ⌀ max. 50.0mm
Bundle ⌀ min. 2.0mm
Cable Tie Head Length (metric) 7.3mm
Cable Tie Head Width (metric) 7.6mm
Diameter (D) 7.62mm
Hole Depth 14.0mm
Length (L) 202.0mm
Offset Length 18.0mm
Panel Thickness 14.0mm
Strap Width max. (G) 0.30"
Thickness (T) 1.2mm
Width (W) 4.6mm
for Hole ⌀ (FH) 8.0 mm
CE Certification No
CSA Certified No
Operating Temperature -40 °C to +90 °C
ROHS compliant Yes
Specifications
Country of Origin MX
GTIN-13 / EAN 4031026785318
Packaging 1 - Qty 3000
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 11.3398kg
Packaging 3 - Height (m) 0.37465m
Packaging 3 - Length (m) 0.59055m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0646
Packaging 3 - Width (m) 0.2921m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
