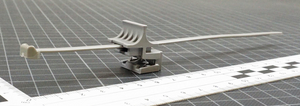

Fixing tie, outside serrated, ⌀12.4mm, grey, 2500pcs.
Art.-No. 156-03960 | T50ROSDEC1-3SP-PA46-GY |

Copied

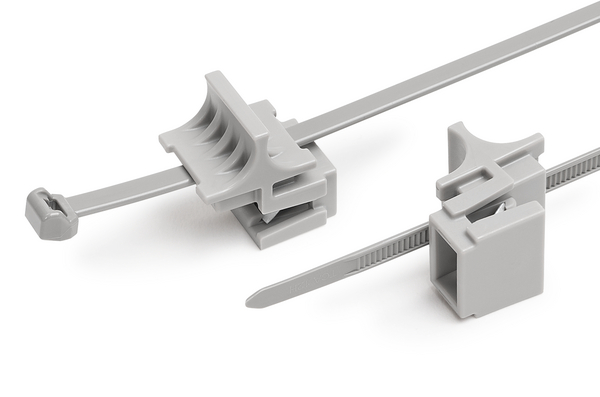

    • 2-piece fastening ties for edges for secure parallel routing of cable bundles
    • Equipped with an integrated plastic side support for increased stability and surface contact
    • Improved mechanical load distribution thanks to the additional molded support structure
    • Designed for reliable hold during vibrations and movements
    • Can be pushed onto the edge by hand
    • Ideal for use in the automotive industry and in high-performance environments with demanding thermal and mechanical conditions thanks to the PA46
    Show more
    Add to watchlist
    Downloads
    Cable Tie Polyamide 4.6 (PA46)
    Colour Grey (GY)
    Foot Part Polyamide 4.6 (PA46)
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T50ROSDEC1-3SP-PA46-GY
    Pack Cont. 2500pcs.
    Package Content packed in box
    Product Family EdgeClip-Series, 1.5 - 4.0 mm
    Product Group 2-piece fixing ties for edges
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50ROSDEC1-3SP
    Variant Edge Clip
    Bundle ⌀ 12.4mm
    Bundle ⌀ max. 12.4mm
    Height (H) 1.3mm
    Height (H2) 24.4mm
    Length (L) 200.0mm
    Length (L2) 24.5mm
    Min.Tensile Strength 225N
    Panel Thickness max. 1.0 - 3.0mm
    Thickness (T) 1.3mm
    Weight/Unit 0.004867kg
    Width (W) 4.6mm
    Width (W2) 18.0mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026699998
    Packaging 1 - Height (m) 0.8m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 2500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.192m³
    Packaging 1 - Weight (kg) 12.232911kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 2500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 13.052911kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 30000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 177.63kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
