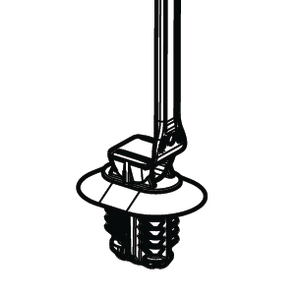

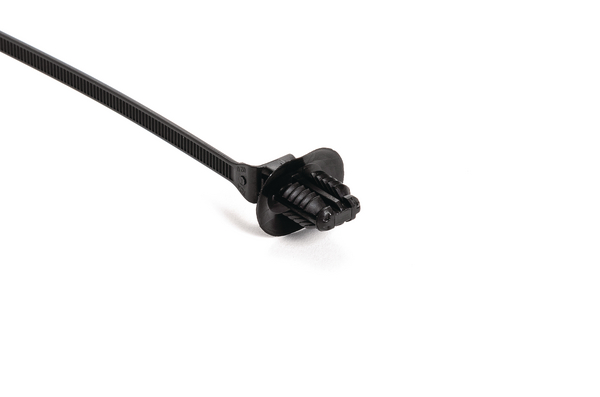

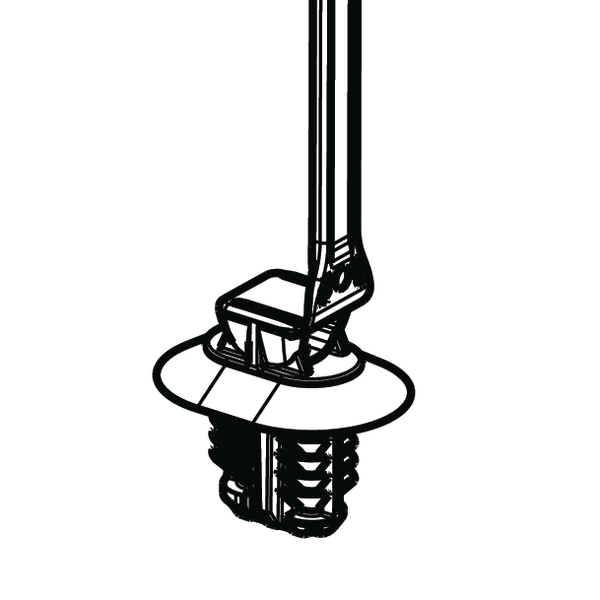

Fixing tie for hole (oval), outside serrated, Ø2.0-50.0mm, black, 500pcs.
Art.-No. 157-00232 | T50ROSFTOVALR-PA66HIRHSUV-BK |  Details

The fir tree mount cable tie is an all-in-one bundling and fastening solution that reduces costs and assembly time.

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool

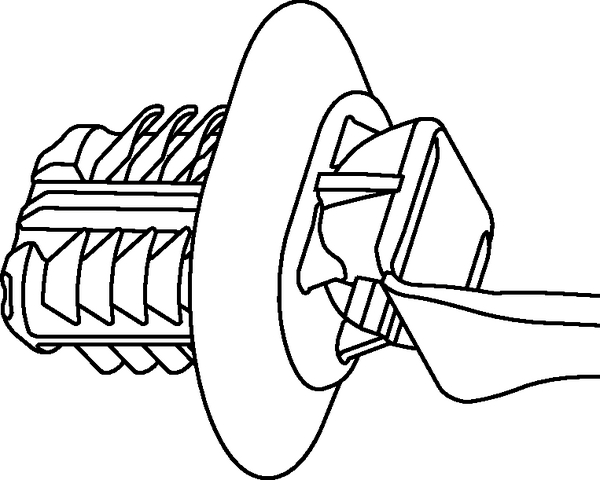

    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • Versions for oval holes feature anti-twist protection
    Show more
    Package size
    Add to watchlist
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Application Tool ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO7, EVO7SP, EVO7iSP, EVO9, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Pack Cont. 500pcs.
    Package Content packed in bag
    PART DESCRIPTION T50ROSFTOVALR-PA66HIRHSUV-BK
    Product Family for oval holes
    Product Group 1-piece fixing ties with fir tree, with disc
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Variant Outside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Disc ∅ 17.6 x 23.6mm
    Fixing Hole Shape Oval
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6 mm
    for Panel Thickness min - max 0 - 0.2 "
    Height (H) 13.15mm
    Length (L) 218.44mm
    Min.Tensile Strength 222.4N
    Panel Thickness max. 0.6 - 6.0mm
    Thickness (T) 1.5mm
    Weight/Unit 0.002335kg
    Width (W) 5.1mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026505817
    Packaging 1 - Height (m) 0.105m
    Packaging 1 - Length (m) 0.59m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.02044m³
    Packaging 1 - Weight (kg) 1.2285kg
    Packaging 1 - Width (m) 0.33m
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 5.684kg
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Height (m) 1.239m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 30000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.189m³
    Packaging 4 - Weight (kg) 106.26kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
